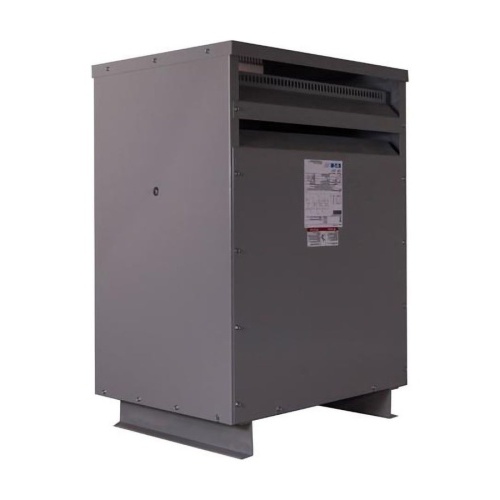

Eaton T29M11F3716LS42 Ventilated Transformer - Single Phase, 37.5 kVA
Normally In Stock
Eaton T29M11F3716LS42 - Single Phase - Max Input: 208V - Max Output: 240V - 37.5 kVA - 60 Hz - 37.6" x 22.9" x 20.4" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$9993.84
Sale Price
$8328.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton T29M11F3716LS42 - General purpose ventilated transformer - DS-3 (1-phase) - PV 208V - Taps: 2 at +2.5% /4 at -2.5% - SV 120/240V - 115°C rise - 37.5 kVA - 16 - LS - 42
Specifications
Transformer Voltage Phases
Single Phase
Transformer VoltAmp
37.5 Kva
Manufacturer
Eaton
Component
Ventilated Transformer
Coil Material
Aluminum
Frequency Rating
60 Hz
Frame
818
Tap Size
4 At -2.5% FCBN
Tap Size
2 At +2.5% FCAN
Transformer Primary Voltage In
208 Volt
Transformer Secondary Voltage Out
120 Volt
Transformer Secondary Voltage Out
240 Volt
Features
Includes transformers with DOE 2016 and NEMA TP-1 efficiency requirements, and transformers with other efficiency requirements
Ventilated dry-type distribution transformers provide options in aluminum or copper windings
Available in 150 °C, 115 °C, and 80 °C temperature rise
Optional low-sound 3 dB and 5 dB below NEMA ST-20 standard
Available in 60 and 50 Hz
NEMA 2 standard enclosures, NEMA 3R with field-installed weathershields
Transformers include a versatile bonding/grounding bar affixed to the bottom panel as standard, to provide compliance with NEC 450.10(A)
