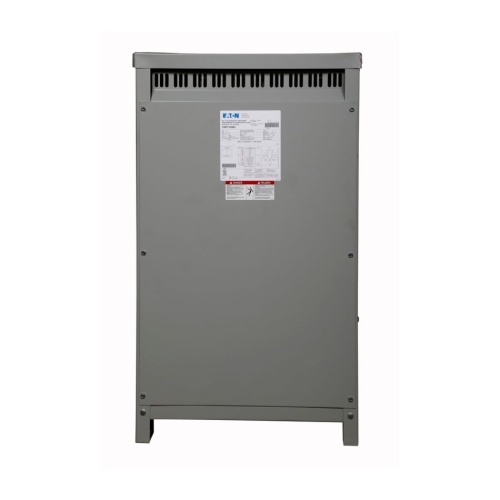

Eaton T29M11B10 Ventilated Transformer - Single Phase, 10 kVA
Normally In Stock
Code: 442479
Eaton T29M11B10 - Single Phase - Max Input: 208V - Max Output: 240V - 10 kVA - 60 Hz - 30.3" x 16.9" x 15.8" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$10386.84
Sale Price
$8655.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton T29M11B10 - General-Purpose Transformer - Ventilated - Dry Type Distribution - DS-3 - Single-phase - PV: 208V - Taps: 2 at +2.5% FCAN - 4 at -2.5% FCBN - SV: 120/240V - 80°C - 10 kVA - Al windings - Frame: 815 - uses WS15
Specifications
Transformer Voltage Phases
Single Phase
Transformer VoltAmp
10 Kva
Manufacturer
Eaton
Component
Ventilated Transformer
Transformer Secondary Voltage Out
120V
Transformer Secondary Voltage Out
240V
Transformer Primary Voltage In
208V
Coil Material
Aluminum
Frequency Rating
60 Hz
Tap Size
4 At -2.5% FCBN
Tap Size
2 At +2.5% FCAN
Frame
815
Features
Includes transformers with DOE 2016 and NEMA TP-1 efficiency requirements, and transformers with other efficiency requirements
Ventilated dry-type distribution transformers provide options in aluminum or copper windings
Available in 150 °C, 115 °C, and 80 °C temperature rise
Optional low-sound 3 dB and 5 dB below NEMA ST-20 standard
Available in 60 and 50 Hz
NEMA 2 standard enclosures, NEMA 3R with field-installed weathershields
Transformers include a versatile bonding/grounding bar affixed to the bottom panel as standard, to provide compliance with NEC 450.10(A)
