Code: 442326

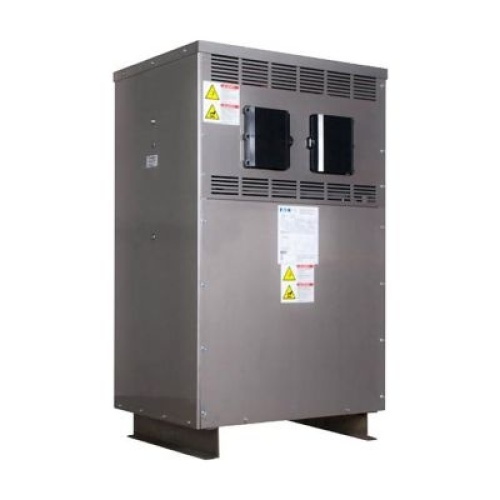

Eaton RV48M28B1216CUSB Breaker Integrated Ventilated Transformer - Three Phase, 112.50 kVA
Normally In Stock
Eaton RV48M28B1216CUSB - Three Phase - Max Input: 480V - Max Output: 208Y/120V - 112.50 kVA - 60 Hz - 59.5" x 34.5" x 31.5" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$60455.93
Sale Price
$50379.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton RV48M28B1216CUSB - Breaker integrated ventilated transformer - 112.5 kVA BRKR INTEG XFMR 3PH 480-208Y/120 80C Rise Copper LGE3400FAGC Sec MCCB 943SD 280BSB
Specifications
Transformer Voltage Phases
Three Phase
Manufacturer
Eaton
Mounting
Floor
Transformer Primary Voltage In
480V
Transformer Secondary Voltage Out
208Y/120V
Frequency Rating
60 Hz
Coil Material
Copper
Enclosure
NEMA 2
Component
Breaker Integrated Ventilated Transformer
Tap Size
4 At -2.5%
Tap Size
2 At +2.5%
Transformer VoltAmp
112.50 Kva
Frame
943SD
Features
Replace the need for separate power distribution components with a fully enclosed molded-case circuit breaker (MCCB) integrated into Eaton’s proven low-voltage dry-type distribution transformer technology
Includes transformers with DOE 2016 and efficiency requirements, and transformers with other efficiency requirements
Take advantage of space savings with an integrated design that can save up to 30 percent compared to traditional, separately installed solutions
Easily configure to specific application needs with a wide range of primary, secondary, primary and secondary, or secondary and secondary breaker choices
Reduce hazard of arc flash
Transformers include a versatile bonding/grounding bar affixed to the bottom panel as standard, to provide compliance with NEC 450.10(A)
