Code: 4420

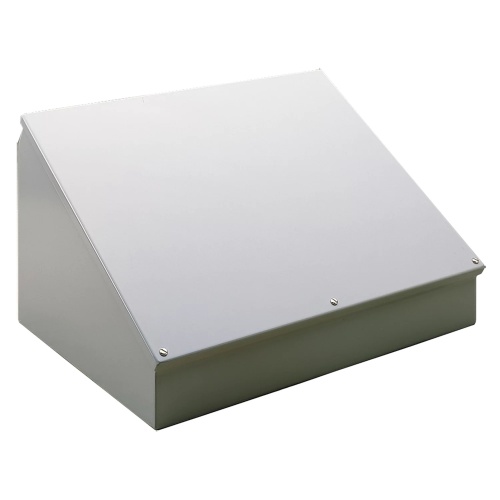

nVent Hoffman C20C30SS Stainless Steel Consolet Enclosure
nVent Hoffman C20C30SS Consolet Enclosure Stainless Steel 20.00 x 30.00 x 13.09 inch (HxWxD) Type 12 304 Stainless Steel Consolet. Cover attached with continuous hinge and captivated cover screws thread into sealed wells. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$3392.65
Sale Price
$2827.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman C20C30SS Stainless Steel Consolet Enclosure nVent Hoffman C20C30SS Consolet Enclosure Stainless Steel 20.00 x 30.00 x 13.09 inch (HxWxD) This nVent Hoffman Type 12 304 Stainless Steel Consolet may be small, but it still sports all of the strength and durability that we've come to expect from nVent Hoffman. The 30- or 60-degree sloped cover is attached with a continuous hinge, and captivated cover screws thread into sealed wells. With continuously welded seams and an oil-resistant gasket, this enclosure is sure to protect all enclosed components.
Specifications
Enclosure Hinge Type
Continuous Hinge
Enclosure Latch Type
Screw Lift-Off
Enclosure Depth
13"
Enclosure Mount Type
Pedestal Mount
Enclosure Composition
304 Stainless Steel
Enclosure Height
20"
Enclosure Width
30"
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
Bonding provision on cover
No holes or knockouts
Captivated cover screws thread into sealed wells
Oil-resistant gasket and adhesive
Seams continuously welded and ground smooth
Can be positioned on either of two sides to provide a 30- or 60-degree surface access
Continuous hinge
Downloads
Hoffman C20C30SS 2D DXF CAD.zipHoffman C20C30SS 3D STEP CAD.zipHoffman C20C30SS CAD Drawing.zipHoffman C20C30SS Declaration of Compliance.pdfHoffman C20C30SS Dimension Drawing.gifHoffman C20C30SS EU Certification.pdfHoffman C20C30SS Instruction Manual.pdfHoffman C20C30SS Spec Sheet.pdfHoffman C20C30SS UL Certification.pdfHoffman C20C30SS User Manual.pdf
