Code: 44026

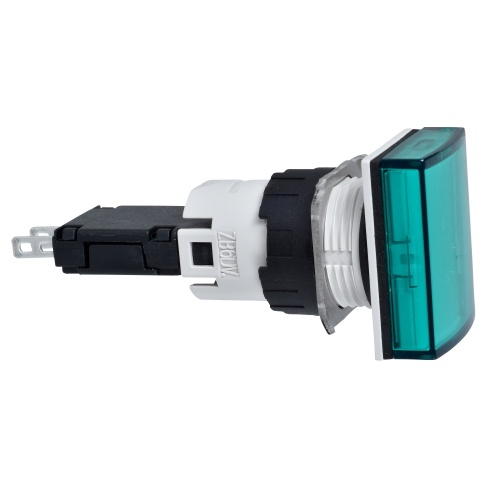

Schneider Electric XB6DV3BB Harmony 16 mm Rectangular Green Plastic Pilot Light Illuminated 12-24 V AC/DC Modular Complete Assembly
Normally In Stock
Schneider Electric XB6DV3BB Harmony 16 mm Rectangular Green Plastic Pilot Light that is Illuminated . Uses 12-24 V AC/DC and is a Modular Complete Assembly and has Faston Connectors and is IP 65 rated and UL 508 certified.
Condition: New
Usually ships Same Day or Next Day$23.16
Sale Price
$19.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric XB6DV3BB Harmony 16 mm Rectangular Green Plastic Illuminated Pilot Light Modular Complete Assembly is made for small areas and is designed to be simple and flexible with a Faston Connector and a Steady signal. Uses 12-24 V AC/DC and is IP 65 and UL 508 rated.
Specifications
(Switching-Indication) Color
White
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) Contact Configuration
1 NO
(Switching-Indication) Composition
Plastic
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) Size
16 mm
(Switching-Indication) IP Rating
IP 65
(Switching-Indication) Shape
Rectangular
(Switching-Indication) Current Consumption
15 mAmp
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) Operation
Latching
Manufacturer
Schneider Electric
(Switching-Indication) DC Voltage
12-24 Volt
(Switching-Indication) AC Voltage
12-24 Volt
Component
Modular Push Button
Features
XB6/ZB6 16mm push buttons, pilot lights and selctor swiches are for applications where the surface area is restricted
These operators are commonly used on small machines, control panels, control boards, small electronic equipment and more
This operator is a complete 16mm pilot light
Pilot light has a green rectangular lens
Pilot light has a 12-24 VAC/VDC LED light module
Light module has 2.8 x 0.5 mm faston connectors
Selector switch is 0.71 inches tall, 0.94 inches wide and 2.24 inches deep
Selector switch weighs 0.03 lbs
Operator is NEMA 4, 4X and 13 rated
Selector switch is UL listed and CSA certified
\This product is certified by CCC, CSA, UL and GOST
It meets JIS C 852, JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-1 and JIS C8201-1 standards.\,\It is installed into a Ø 16mm panel cutout.\,\The modular and monolithic range of Ø 16mm plastic control and signaling provide flexibility and simplicity of setup in industrial and commercial applications.\
