Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 4402

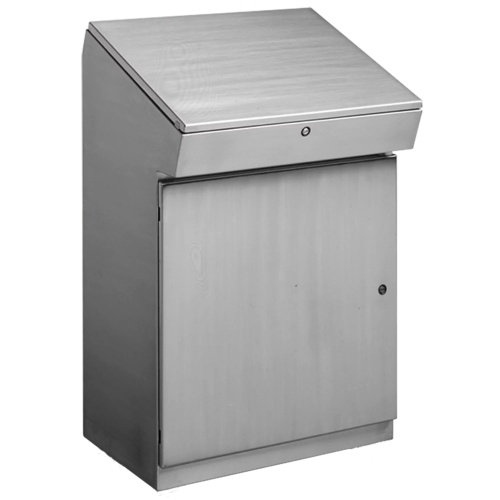

nVent Hoffman CFC383616SS Stainless Steel Consolet Enclosure
nVent Hoffman CFC383616SS Enclosure Stainless Steel 38 x 36 x 16 inch (HxWxD) Type 4X 304 Stainless Steel Console hinged with Tool-to-open 3-point latch on front access door. Door is removable and reversible with 170-degree full-access opening. Quarter-turn stainless steel latches hold top cover securely closed. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$12585.18
Sale Price
$10487.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman CFC383616SS Stainless Steel Consolet Enclosure nVent Hoffman CFC383616SS Enclosure Stainless Steel 38 x 36 x 16 inch (HxWxD) This nVent Hoffman Type 4X 304 Stainless Steel Console has a sloped top that is extremely convenient for monitoring controls. The 20-degree sloped-top, quarter-turn latch and door props that hold the cover open at 90-degrees add to the ease of access on this nVent Hoffman enclosure. With a tool-to-open 3-point latch on the removable and reversible front-access door, the uses of this enclosure are endless. The integral water-shedding trough and seamless foam-in-place gasket are sure to protect enclosed components. With a design perfect for sitting or standing, this nVent Hoffman enclosure is versatile enough for a large variety of jobs and projects.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Lock Type
Sold Separately
Enclosure Depth
16"
Enclosure Mount Type
Pedestal Mount
Enclosure Composition
304 Stainless Steel
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
36"
Enclosure Height
38"
Enclosure Door Type
Solid
Enclosure Number of Doors
1 Door
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
Quarter-turn stainless steel latches hold top cover securely closed
External-formed 90-degree body flange
20-degree sloped-top cover for 38.00-in. (965-mm) tall console or 30-degree top cover for 48.00-in. (1219-mm) console
Door props hold top cover open at 90-degrees
Corner-formed doors
Solid bottom
Integral water-shedding trough
Seamless foam-in-place gasket
Tool-to-open 3-point latch on front access door, door is removable and reversible, 170-degree full-access opening
Optional side panels (mounted to collar studs) expand equipment mounting space
Collar studs for optional back panel
Bonding provision on door, grounding stud on body
Provision for data pocket on lower front door
Easy-to-remove clip-style hinge pins
Downloads
Hoffman CFC383616SS 2D DXF CAD.zipHoffman CFC383616SS 3D STEP CAD.zipHoffman CFC383616SS CAD Drawing.zipHoffman CFC383616SS Declaration of Compliance.pdfHoffman CFC383616SS Dimension Drawing.gifHoffman CFC383616SS EU Certification.pdfHoffman CFC383616SS Instruction Manual.pdfHoffman CFC383616SS Spec Sheet.pdfHoffman CFC383616SS UL Certification.pdfHoffman CFC383616SS User Manual.pdf
