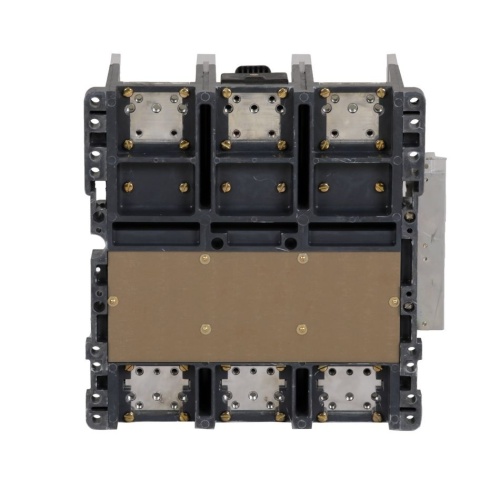

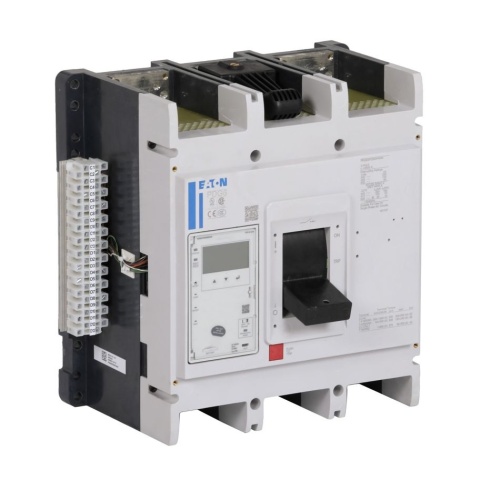

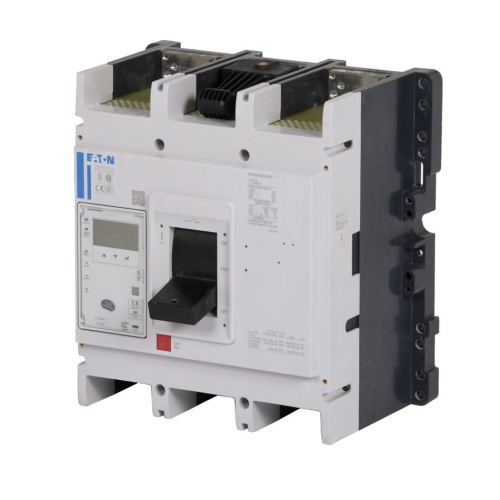

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

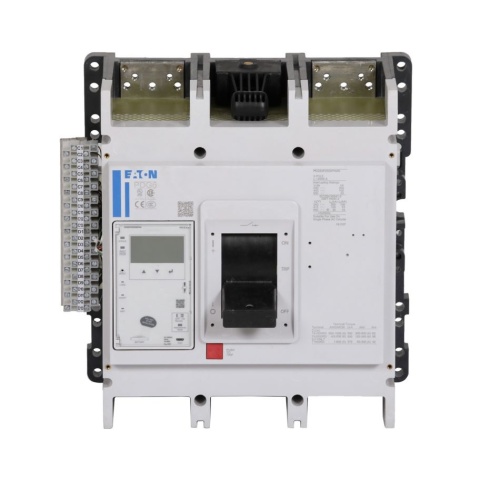

Eaton PDG62M2500P5DN - MCCB 2P, 2500 Amp, 600 VAC, 6 Frame
Normally In Stock
Code: 435934
Eaton PDG62M2500P5DN - Frame 6, Two Pole, 2500A, 65kA/480V, PXR25 Arcflash Reduction Maintenence System (ARMS) LSIG w/ Modbus RTrip Unit, CAM Link and Relays, No Terminals
Condition: New
Usually ships Same Day or Next Day$28360.37
Sale Price
$23633.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton PDG62M2500P5DN - Power Defense Molded Case Circuit Breakers—Frame Size 6 Product Description Frame Size 6 covers a range of 700 A through 2500 A with a complete offering of advanced PXR electronic trip units. It includes three frame sizes of 1600 A, 2000 A and 2500 A. Application Description Frame Size 6 can be used to meet a wide range of circuit protection and power distribution needs, including ground fault protection and 100% UL ratings. PXR trip units in PD-6 provide all levels of protection, including energy metering with multiple communication schemes, breaker health indication and arc flash reduction options. Features and Benefits Frame Size 6 breakers are modular and available as complete breakers from the factory or as modular components, including frames, trip units, accessories and terminals to provide flexibility for customers. PXR trip units are available with advanced features to provide customers unparalleled situational awareness of their electrical system. Standards and Certifications Power Defense breakers are designed and tested to meet stringent requirements for: ● UL ● CSA ● IEC (CE) ● CB (CCC) - 16" x 15.5" x 9.8" (HxWxD)
Specifications
Poles (Molded Case Breaker)
Two Pole
Amperage (Molded Case Breaker)
2500 Amp
Maximum Voltage (Molded Case Breaker)
600 VAC
UL Listing (Molded Case Breaker)
UL 489
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
65 Ka 480 Volt
Manufacturer
Eaton
Frame Type (Molded Case Breaker)
6 Frame
Interrupt Rating (Molded Case Breaker)
45 Ka 600 Volt
Communications
Modbus RTU And CAM Link
Trip Unit Type
PXR 25 LSIG W/ARMS
Features
Globally accepted platform in a number of industry standards including UL®, CSA,IEC, and CCC.
Power Xpert Release trip units offer features such as Breaker Health, multiple Load Alarms, and Ground Fault Alarm to help avoid costly downtime through predictive and preventative maintenance.
Arcflash Reduction Maintenance System helps to reduce arc flash incident energy levels, thereby reducing PPE requirements and minimizing risk while improving personnel safety and productivity.
The PXR trip units provide an intuitive user interface that allows you to easily view and adjust breaker settings and system performance.
Embedded communications and metering help to reduce cost by eliminating the need for separate communication components and associated wiring.
Field installable components and trip units minimize the amount of inventory while enabling the user almost infinite options to customize the breaker to the application and their specification
