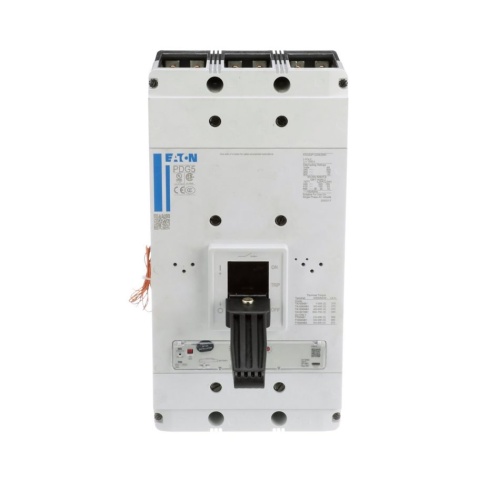

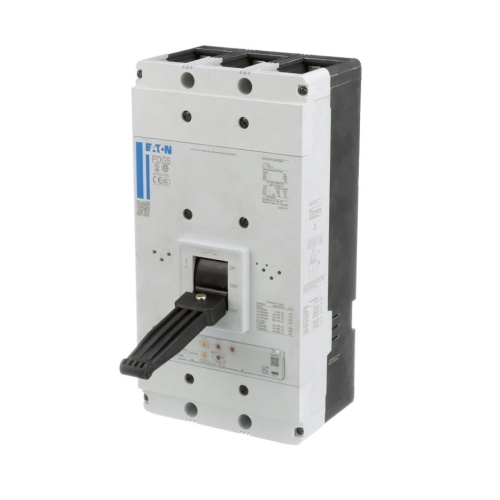

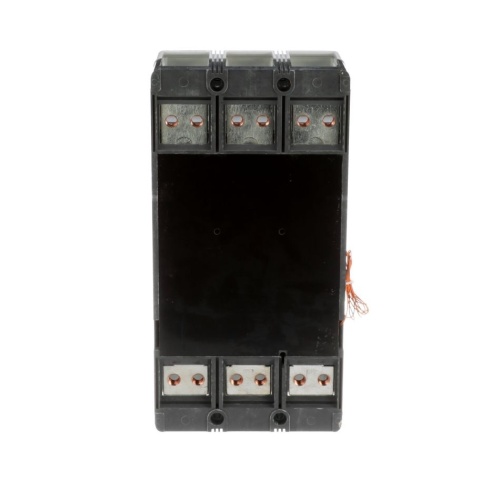

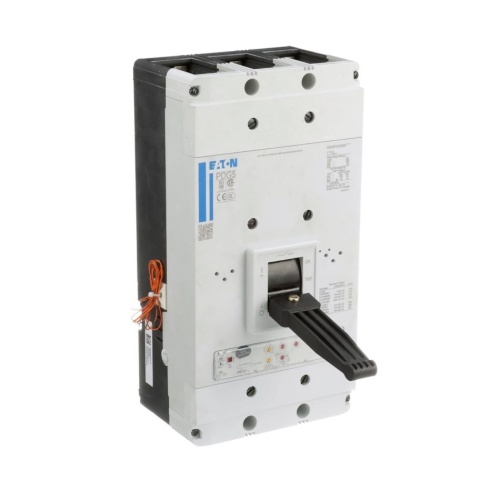

Eaton PDG52N1200E2MM - MCCB 2P, 1200 Amp, 600 VAC, 5 Frame
Normally In Stock
Code: 433382
Eaton PDG52N1200E2MM - Frame 5, Two Pole, 1200A, 85kA/480V, PXR20 LSI w/ Modbus RTrip Unit and Relays, No Terminals (Metric Tapped Conductors)
Condition: New
Usually ships Same Day or Next Day$11971.34
Sale Price
$9976.12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton PDG52N1200E2MM - The Power Defense Molded Case Circuit Breakers in Frame Size 5 offer a global range of 320 A through 1200 A, with additional frame sizes of 800 A and 1200 A. There is also a 1600 A IEC (CE) and GB (CCC) frame, covering 800 A through 1600 A. Frame Size 5 caters to diverse circuit protection and power distribution needs, encompassing ground fault protection, 100% UL ratings, high interrupting capacity, and high instantaneous settings for selective coordination. Equipped with advanced PXR electronic trip units, PD-5 provides comprehensive protection, energy metering with multiple communication schemes, breaker health indication, and arc flash reduction options. These modular breakers are available as complete units or as modular components, offering flexibility to customers with frames, trip units, accessories, and terminals. They adhere to rigorous standards and certifications, including UL, CSA, IEC (CE), and CB (CCC). - 16" x 8.2" x 5.5" (HxWxD)
Specifications
Poles (Molded Case Breaker)
Two Pole
Amperage (Molded Case Breaker)
1200 Amp
Maximum Voltage (Molded Case Breaker)
600 VAC
UL Listing (Molded Case Breaker)
UL 489
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
50 Ka 600 Volt
Manufacturer
Eaton
Interrupt Rating (Molded Case Breaker)
85 Ka 480 Volt
Frame Type (Molded Case Breaker)
5 Frame
Communications
Modbus RTU
Trip Unit Type
PXR 20 LSI
Features
Globally accepted platform in a number of industry standards including UL®, CSA,IEC, and CCC.
Power Xpert Release trip units offer features such as Breaker Health, multiple Load Alarms, and Ground Fault Alarm to help avoid costly downtime through predictive and preventative maintenance.
Arcflash Reduction Maintenance System helps to reduce arc flash incident energy levels, thereby reducing PPE requirements and minimizing risk while improving personnel safety and productivity.
The PXR trip units provide an intuitive user interface that allows you to easily view and adjust breaker settings and system performance.
Embedded communications and metering help to reduce cost by eliminating the need for separate communication components and associated wiring.
Field installable components and trip units minimize the amount of inventory while enabling the user almost infinite options to customize the breaker to the application and their specification
