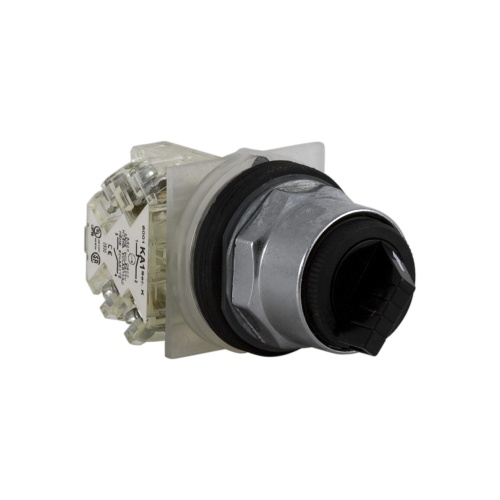

Schneider Electric 9001KS11BH7 Harmony Chromium plated metal Selector Switch Complete product 30 mm Non-Illuminated 10 Amp Screw Clamp Terminals
Normally In Stock
Code: 43286
Schneider Electric 9001KS11BH7 Harmony Chromium plated metal Selector Switch Complete product 30 mm Non-Illuminated 10 Amp Screw Clamp Terminals standard knob Black 2 positions
Condition: New
Usually ships Same Day or Next Day$130.07
Sale Price
$108.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric 9001KS11BH7 Harmony Selector Switch is designed to be simple, flexible and durable. This device is with a size of 30 mm. Non-Illuminated 10 Amp Screw Clamp Terminals standard knob Black with 2 positions and Maintained functionality.
Specifications
(Switching-Indication) Size
30 mm
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Color
Black
(Switching-Indication) Profile
Knob
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) Positions
2 Positions
(Switching-Indication) NEMA Rating
NEMA 1
(Switching-Indication) NEMA Rating
NEMA 12
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 2
(Switching-Indication) NEMA Rating
NEMA 3
(Switching-Indication) NEMA Rating
NEMA 3R
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) NEMA Rating
NEMA 6
(Switching-Indication) Operation
Maintained
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
Manufacturer
Schneider Electric
Component
Selector Switch
Features
The 9001K push button line has a large variety of operators and accessories for heavy industry applications
These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more
Type K operators have a die cast operator that mounts in a 1.18 inch round hole
This non-illuminated 2 position selector switch has a die cast ring nut
The selector switch is maintained in both positions
This operator has two 9001KA2 contact blocks mounted side by side on the back
Each contact block has one normally open contact
Contact blocks have a UL Type A600, UL Type Q600 and a 10A resistive VAC rating
The contacts in these contact blocks are double break
Contact blocks will accept up to two 12AWG to 24 AWG solid or stranded wires
The contact block terminals are protected to meeting VDE 0106 Part 100
This selector switch has a standard black knob
When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments
This operator is UL Listed and CSA certified
\The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications.\
