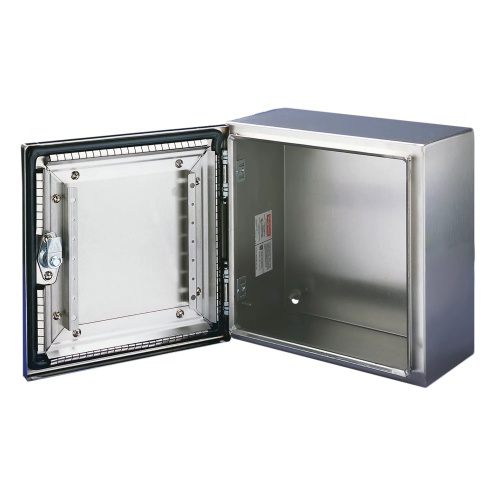

nVent Hoffman CSD12126EMCSS CONCEPT EMC Stainless Steel Enclosure
Code: 4292
nVent Hoffman CSD12126EMCSS Enclosure Stainless Steel 12 x 12 x 6 inch (HxWxD) CONCEPT EMC Type 4X 304 Stainless Steel Enclosure with hidden hinges and quarter-turn latch. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$2608.70
Sale Price
$2173.92
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman CSD12126EMCSS CONCEPT EMC Stainless Steel Enclosure
Specifications
Enclosure Depth
6"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Composition
304 Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
12"
Enclosure Width
12"
Line
CONCEPT
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
Mounting holes in back of body for direct mounting or for optional external mounting brackets
External formed 90-degree body flange
Panel mounting studs fit optional Concept panels and other accessories
Stainless steel hidden hinges
Minimum-width body flange provides maximum body opening
Seams continuously welded and ground smooth
Easy-to-remove clip-style hinge pins
Self-grounding latch system with double seal
Quarter-turn latches with flush slotted insert
Seamless foam-in-place gasket adjacent to spring finger EMC gasket
Removable corner formed door
Integral body grounding stud
Furnished hardware kit includes panel mounting nuts, grounding hardware and sealing washers for wall-mounting holes
Installation instructions
Downloads
Hoffman CSD12126EMCSS 2D DXF CAD.zipHoffman CSD12126EMCSS 3D STEP CAD.zipHoffman CSD12126EMCSS CAD Drawing.dxfHoffman CSD12126EMCSS CAD Drawing.zipHoffman CSD12126EMCSS CONCEPT CSD20166EMCSS Shielding Effectiveness Chart.gifHoffman CSD12126EMCSS Declaration of Compliance.pdfHoffman CSD12126EMCSS Dimension Drawing.gifHoffman CSD12126EMCSS EU Certification.pdfHoffman CSD12126EMCSS Instruction Manual.pdfHoffman CSD12126EMCSS Spec Sheet.pdfHoffman CSD12126EMCSS UL Certification.pdf
