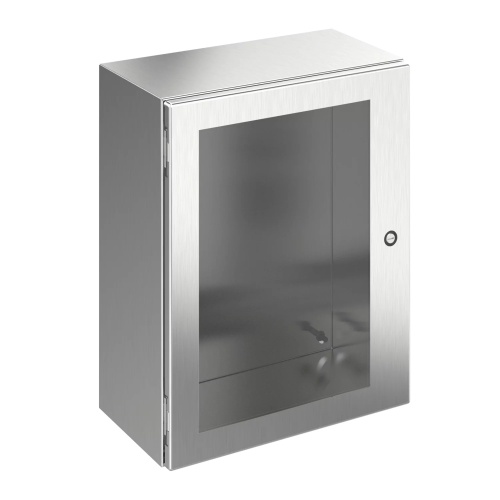

nVent Hoffman CSD302412WSS CONCEPT Window Stainless Steel Enclosure
Normally In Stock
Code: 4291
nVent Hoffman CSD302412WSS Enclosure Stainless Steel 30 x 24 x 12 inch (HxWxD) CONCEPT Type 4X 304 Stainless Steel Window Enclosure with hidden hinges and quarter-turn latch. Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins. For indoor or outdoor applications that require corrosion protection from chemicals and water. CONCEPT Enclosures feature streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure. Available in solid- and window-door models. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$4887.59
Sale Price
$4072.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman CSD302412WSS CONCEPT Window Stainless Steel Enclosure For indoor or outdoor applications that require corrosion protection from chemicals and water. CONCEPT Enclosures feature streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Depth
12"
Enclosure Door Type
Window
Enclosure Composition
304 Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
30"
Line
CONCEPT
Enclosure Mount Type
Wall Mount
Enclosure Width
24"
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
Mounting holes in back of body for direct mounting or for optional external mounting brackets
External formed 90-degree body flange
Panel mounting studs fit optional Concept panels and other accessories
Type 316 stainless steel hidden hinges promote clean aesthetic appearance
Minimum-width body flange provides maximum body opening
Window pre-mounted in door of enclosure.
Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
Bonding provision on door, grounding stud on body
Self-grounding latch system with double seal
Seamless foam-in-place gasket
Quarter-turn latches furnished with flush slotted insert
Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wallmounting hole
Installation instructions
Clear polycarbonate window
Downloads
Hoffman CSD302412WSS 2D DXF CAD.zipHoffman CSD302412WSS 3D STEP CAD.zipHoffman CSD302412WSS CAD Drawing.zipHoffman CSD302412WSS Declaration of Compliance.pdfHoffman CSD302412WSS Dimension Drawing.gifHoffman CSD302412WSS EU Certification.pdfHoffman CSD302412WSS Instruction Manual.pdfHoffman CSD302412WSS Spec Sheet.pdfHoffman CSD302412WSS UL Certification.pdf
