Code: 4269

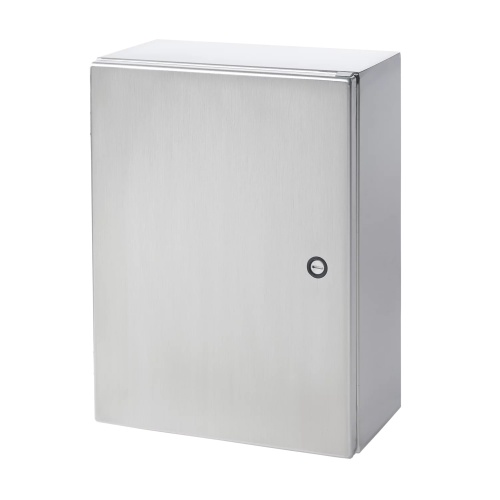

nVent Hoffman CSD302412SS CONCEPT Stainless Steel Enclosure
nVent Hoffman CSD302412SS Enclosure Stainless Steel 30 x 24 x 12 inch (HxWxD) CONCEPT Type 4X 304 Stainless Steel Enclosure with hidden hinges and quarter-turn latch. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$3591.41
Sale Price
$2992.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman CSD302412SS CONCEPT Stainless Steel Enclosure For indoor or outdoor applications that require corrosion protection from chemicals and water. CONCEPT Enclosures feature streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Depth
12"
Enclosure Composition
304 Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
30"
Line
CONCEPT
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Width
24"
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
Type 316 stainless steel hidden hinges promote clean aesthetic appearance
Panel mounting studs fit optional Concept panels and other accessories
Mounting holes in back of body for direct mounting or for optional external mounting brackets
Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
External formed 90-degree body flange
Minimum-width body flange provides maximum body opening
Provision on door (except when B = 12 inch (305mm)) for thermoplastic data pocket
Self-grounding latch system with double seal
Seamless foam-in-place gasket
Quarter-turn latches furnished with flush slotted insert
Provision on door (except when B = 12 inch (305mm)) for optional doorstop kit
Bonding provision on door, grounding stud on body
Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting hole
Downloads
Hoffman CSD302412SS 2D DXF CAD.zipHoffman CSD302412SS 3D STEP CAD.zipHoffman CSD302412SS CAD Drawing.zipHoffman CSD302412SS Declaration of Compliance.pdfHoffman CSD302412SS Dimension Drawing.gifHoffman CSD302412SS EU Certification.pdfHoffman CSD302412SS Instruction Manual.pdfHoffman CSD302412SS Spec Sheet.pdfHoffman CSD302412SS UL Certification.pdfHoffman CSD302412SS User Manual.pdf
