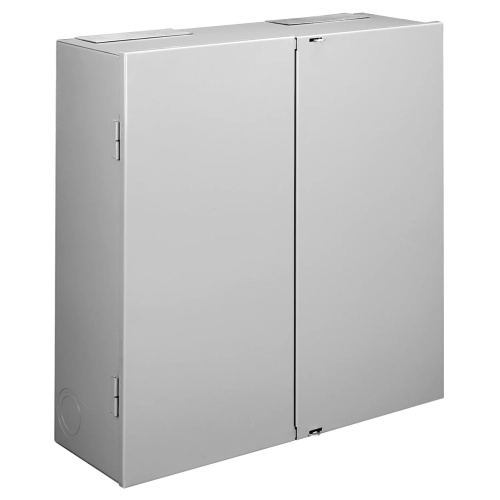

Hoffman AMC271310R Metering Enclosure, Type 1
Hoffman AMC271310R Metering, Type 1 Indoor 27" x 13" x 10" (HxWxD) Steel Enclosure. Wall Mount Painted Steel with Pull Latch latch Standard Hinge. (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $582.40
Sale Price:
$405.60
Hoffman AMC271310R Metering Enclosure, Type 1 Steel Metering Enclosure, Type 1 for indoor use ideal for houses metering transformers and instrument assemblies in indoor applications. Includes one potential transformer and one current transformer panel and one pre-punched accessory. Hinged door with pull latch and provision for padlocking, Gland plates on top of two-door enclosure for meter connection, mounting holes in back and Gray powder coat finish inside and out.
| Specifications | |
| Component | Commercial Enclosure |
| Enclosure Hinge Type | Standard Hinge |
| Enclosure Depth | 10" |
| Enclosure Lock Type | Padlocking |
| Enclosure Interior Color | Gray |
| Enclosure Width | 13" |
| Enclosure Height | 27" |
| Manufacturer | Hoffman |
| Enclosure Environment Rating | Indoor |
| Enclosure Door Type | Solid |
| Enclosure Mount Type | Wall Mount |
| Enclosure Composition | Steel |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 1 |
| Enclosure Type | Metering Enclosure |
