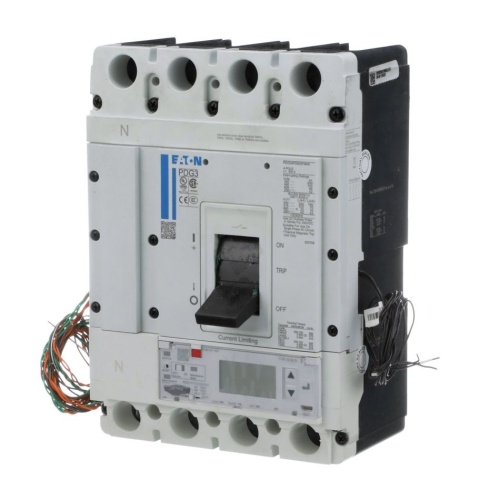

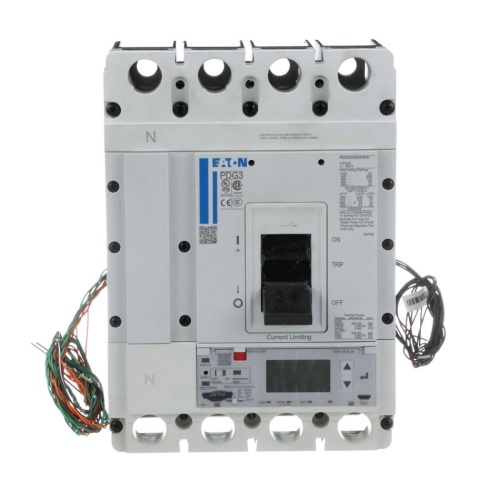

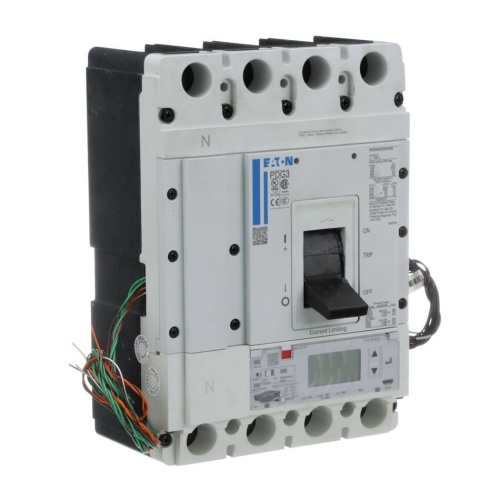

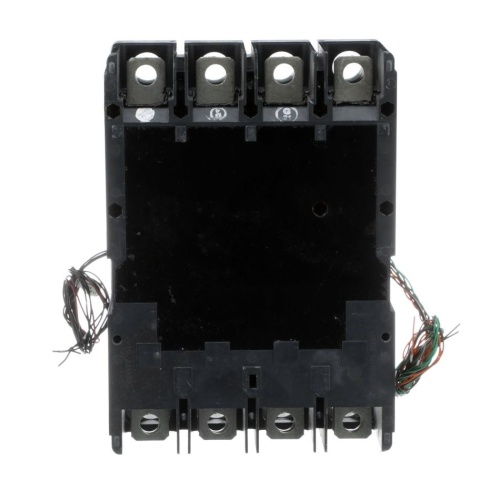

Eaton PDG34MH400P4MJ - MCCB 4P, 400 Amp, 600 VAC, 3 Frame
Normally In Stock
Code: 427181
Eaton PDG34MH400P4MJ - Frame 3, Four Pole, 400A-High, 65kA/480V, PXR25 Arcflash Reduction Maintenence System (ARMS) LSI w/ Modbus RTrip Unit and Relays, Std Line Load Term (PDG3X4TA401H)
Condition: New
Usually ships Same Day or Next Day$7880.98
Sale Price
$6567.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton PDG34MH400P4MJ - The PDG3 400 A Frame Size 3 Molded Case Circuit Protectors (MCPs) cover a current range from 70 A to 400 A, with trip settings from 350 A to 4500 A. They have nine trip settings, equating to 5x to 10x the continuous amperage rating, or 13x the minimum FLA value. A High Calibration MCP is available for applications where disconnecting means must be at least 115% of the motor's full load ampere rating. These MCPs work at a maximum of 600 Vac and 250 Vdc, with slightly higher trip levels for DC applications. Standard aluminum terminals are included, but other options like copper are available. - 10.1" x 7.2" x 4.3" (HxWxD)
Specifications
Poles (Molded Case Breaker)
Four Pole
Amperage (Molded Case Breaker)
400 Amp
Maximum Voltage (Molded Case Breaker)
600 VAC
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
65 Ka 480 Volt
Manufacturer
Eaton
Frame Type (Molded Case Breaker)
3 Frame
Interrupt Rating (Molded Case Breaker)
45 Ka 600 Volt
Communications
Modbus RTU
Trip Unit Type
PXR 25 LSI W/ARMS
Features
Globally accepted platform in a number of industry standards including UL®, CSA,IEC, and CCC.
Power Xpert Release trip units offer features such as Breaker Health, multiple Load Alarms, and Ground Fault Alarm to help avoid costly downtime through predictive and preventative maintenance.
Arcflash Reduction Maintenance System helps to reduce arc flash incident energy levels, thereby reducing PPE requirements and minimizing risk while improving personnel safety and productivity.
The PXR trip units provide an intuitive user interface that allows you to easily view and adjust breaker settings and system performance.
Embedded communications and metering help to reduce cost by eliminating the need for separate communication components and associated wiring.
Field installable components and trip units minimize the amount of inventory while enabling the user almost infinite options to customize the breaker to the application and their specification
