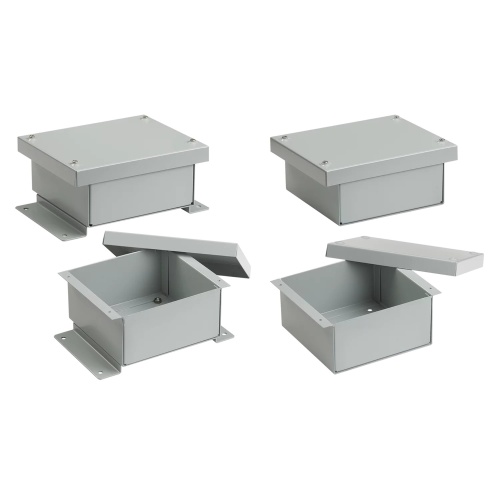

nVent Hoffman A10R104HM Enclosure Horizontal-Mount, Type 3R
Normally In Stock
Code: 42528
nVent Hoffman A10R104HM Horizontal-Mount, Type 3R Outdoor-Indoor 10" x 10" x 4" (HxWxD) Steel Enclosure. Floor mount with Screw Lift-Off screw cover. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$111.54
Sale Price
$92.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman A10R104HM Enclosure Horizontal-Mount, Type 3R Painted Steel Junction Box Horizontal Mount for applications like rooftops or pads. Mounts to floor with removable screw on top. Type 3R for outdoor use, cover is a dripshield with 3/4" overhang on each side, no gasket, welded on mounting brackets, and Gray polyester paint finish inside and out.
Specifications
Enclosure Composition
Galvanized Steel
Enclosure Depth
4"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Lock Type
Padlocking
Enclosure Interior Color
Gray
Enclosure Width
10"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Height
10"
Enclosure Latch Type
Screw
Component
Commercial Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure Type
Screw-Cover Enclosure
Manufacturer
Hoffman
Features
Mounting holes on back for direct mounting through the back to strut or mounting surface, vertical structure for mounting not required
Screw locations on cover are embossed
Enclosure body flange is formed outward
Included mounting brackets provide a 1-inch clearance off surface for protection against pooling water
No gasketing
The screw cover is the drip shield providing 3/4-inch overhang on each side for outdoor protection
Enclosures are finished with paint over plated surfaces
