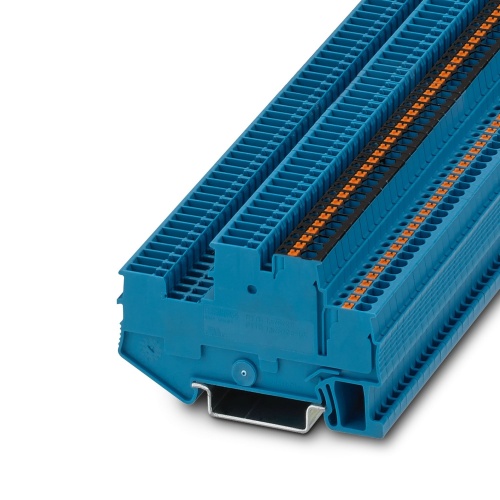

Phoenix Contact 3213933 Double-level terminal block PTTB 1,5/S/2P-PV BU
Normally In Stock
Code: 42443
PTTB 1,5/S/2P-PV BU Phoenix Contact 3213933 Double-level Terminal Block - PTTB 1,5/S/2P-PV BU Push-In Connection 1 Level 3.5 mm with 4 Connections. Not Grounded, Not Fused Blue. 500 V, 16 A max rating.
Condition: New
Usually Ships Same day or Next Day$6.77
Sale Price
$5.64
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3213933 A double-level terminal block features a plug that determines both current and voltage, while an equipotential bonder ensures safety. The nominal specifications include a maximum voltage of 500V and a maximum current of 16A. Connection is made via push-in or plug-in methods for the first and second levels. The rated cross-section ranges from 0.14mm² to 1.5mm², and the mounting type includes NS35/7.5 and NS35/15. Additionally, the terminal block has a blue color coding.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Connections
4
Terminal Block Width
3.5 mm
Terminal Block Number of Levels
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Plug-In Terminal Block
Sub Component
Double-Level Terminal Block
Features
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
Downloads
Phoenix 3213933 CAD data International.dxfPhoenix 3213933 CAD data International.pdfPhoenix 3213933 CAD data International.stpPhoenix 3213933 Manufacturers declaration International-2.pdfPhoenix 3213933 Manufacturers declaration International.pdfPhoenix 3213933 Safety note English.pdfPhoenix 3213933 Tender Text English.zip
