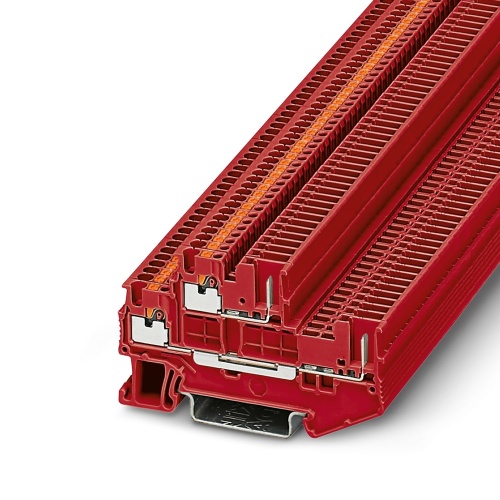

Phoenix Contact 3212443 Double-level terminal block PTTB 1,5/S/2P RD
Normally In Stock
Code: 42440
PTTB 1,5/S/2P RD Phoenix Contact 3212443 Double-level Terminal Block - PTTB 1,5/S/2P RD Push-In Connection 1 Level 3.5 mm with 4 Connections. Not Grounded, Not Fused Red. 500 V, 16 A max rating.
Condition: New
Usually Ships Same day or Next Day$3.14
Sale Price
$2.62
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212443 A double-level terminal block with a push-in/plug connection has a rated nominal voltage of 500 V and current of up to 16 A. The cross-sectional area of the first level is 1.5 mm2, ranging from 0.14 mm2 to 1.5 mm2, while the second level has a cross-section within this range. The terminal block can be mounted using the NS 35/7,5 and NS 35/15 mounting types, and it features a distinctive red color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Connections
4
Terminal Block Width
3.5 mm
Terminal Block Number of Levels
2
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
16
Terminal Block Component Color
Red
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Plug-In Terminal Block
Sub Component
Double-Level Terminal Block
Features
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
