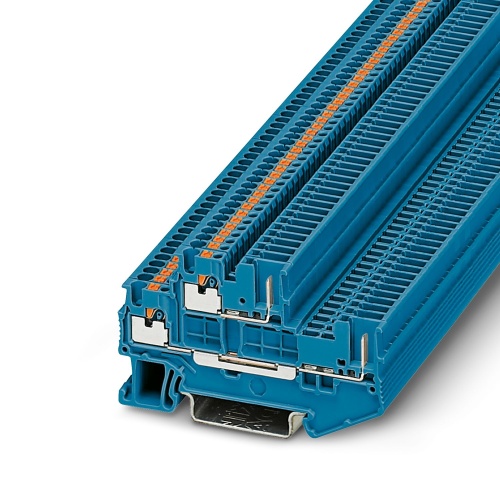

Phoenix Contact 3212442 Double-level terminal block PTTB 1,5/S/2P BU
Normally In Stock
Code: 42439
PTTB 1,5/S/2P BU Phoenix Contact 3212442 Double-level Terminal Block - PTTB 1,5/S/2P BU Push-In Connection 1 Level 3.5 mm with 4 Connections. Not Grounded, Not Fused Blue. 500 V, 16 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.98
Sale Price
$2.48
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212442 The terminal block features a double-level design with plug connections that determine the current and voltage settings. The nominal voltage is 500V, while the nominal current is 16A. Connection methods include push-in/plug connections for both levels of the board. Rated cross sections range from 0.14mm² to 1.5mm², and mounting types are NS 35/7,5 and NS 35/15, with a blue color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Connections
4
Terminal Block Width
3.5 mm
Terminal Block Number of Levels
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Plug-In Terminal Block
Sub Component
Double-Level Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
Tested for railway applications
Downloads
Phoenix 3212442 CAD data International.dxfPhoenix 3212442 CAD data International.pdfPhoenix 3212442 CAD data International.stpPhoenix 3212442 Manufacturers declaration International-2.pdfPhoenix 3212442 Manufacturers declaration International.pdfPhoenix 3212442 Safety note English.pdfPhoenix 3212442 Tender Text English.zip
