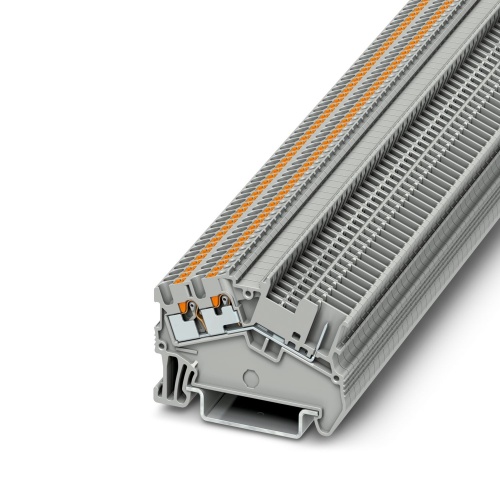

Phoenix Contact 3214709 Feed-through terminal block PTS 1,5/S-TWIN/1P
Normally In Stock
Code: 42432
PTS 1,5/S-TWIN/1P Phoenix Contact 3214709 Feed Through Terminal Block - PTS 1,5/S-TWIN/1P Push-In Connection 1 Level 3.5 mm with 3 Connections. Not Grounded, Not Fused Gray. 500 V, 17.5 A max rating.
Condition: New
Usually Ships Same day or Next Day$1.93
Sale Price
$1.61
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214709 A feed-through terminal block features a nominal voltage of 500 V and a maximum current rating of 17.5 A, accommodating three connections in a single position via push-in or plug connections. The rated cross-sectional area ranges from 0.14 mm2 to 1.5 mm2, and the mounting type is compatible with NS 35/7,5 and NS 35/15.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Width
3.5 mm
Terminal Block Number of Connections
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
Free choice of connection technology with uniformly designed COMBI plug-in zone
A nominal current of 41 A and a nominal voltage of 1,000 V can be realized with the powerful plug-in contact
Maximum safety with the touch-proof design
Protection against mismatching with individual coding options
Complete flexibility with connectors for self-assembly
