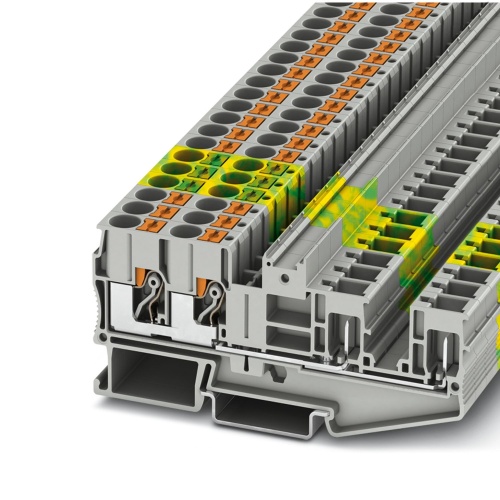

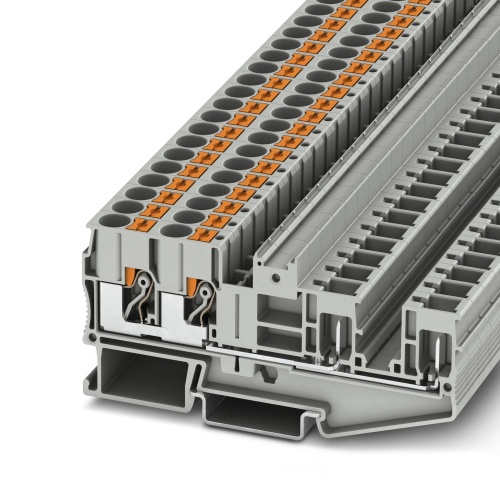

Phoenix Contact 3061826 Feed-through terminal block PT 6-QUATTRO/2P
Normally In Stock
Code: 42428
PT 6-QUATTRO/2P Phoenix Contact 3061826 Feed Through Terminal Block - PT 6-QUATTRO/2P Push-In Connection 1 Level 3.5 mm with 4 Connections. Not Grounded, Not Fused Gray. 1000 V, 41 A max rating.
Condition: New
Usually Ships Same day or Next Day$6.41
Sale Price
$5.34
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3061826 The feed-through terminal block features a nominal voltage of 1000 V and a nominal current capacity of 41 A, accommodating four connections via push-in or plug connection. The cross-sectional ratings range from 6 mm2 to 10 mm2, with the actual section used depending on application needs. It is mounted using the NS 35/7,5 or NS 35/15 type and has a gray coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Terminal Block Amperage
41 Amp
Terminal Block Connection Method
Plug Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
Downloads
Phoenix 3061826 CAD data International.dxfPhoenix 3061826 CAD data International.pdfPhoenix 3061826 CAD data International.stpPhoenix 3061826 Manufacturers declaration International-2.pdfPhoenix 3061826 Manufacturers declaration International.pdfPhoenix 3061826 Safety note English.pdfPhoenix 3061826 Tender Text English.zip
