Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

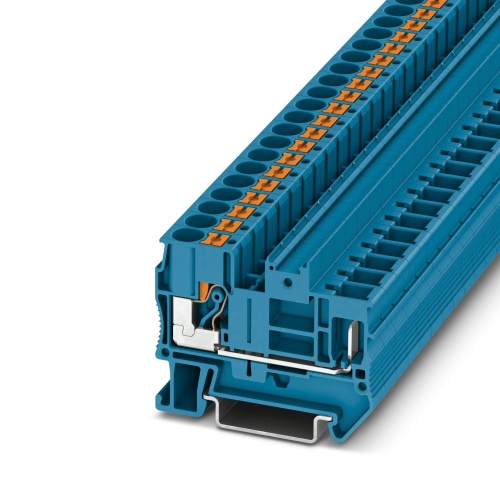

Phoenix Contact 3061761 Feed-through terminal block PT 6/1P BU
Normally In Stock
Code: 42426
PT 6/1P BU Phoenix Contact 3061761 Feed Through Terminal Block - PT 6/1P BU Push-In Connection 1 Level 3.5 mm with 2 Connections. Not Grounded, Not Fused Blue. 1000 V, 41 A max rating.
Condition: New
Usually Ships Same day or Next Day$3.53
Sale Price
$2.94
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3061761 A feed-through terminal block features a nominal voltage of 1000 V and can handle up to 41 A of current, accommodating two connections via a push-in or plug connection. The rated cross-sectional area is 6 mm2, with acceptable values ranging from 0.5 to 10 mm2. Mounting options include NS 35/7.5 and NS 35/15, while the terminal block itself comes in blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Terminal Block Amperage
41 Amp
Terminal Block Connection Method
Plug Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
Downloads
Phoenix 3061761 CAD data International.dxfPhoenix 3061761 CAD data International.pdfPhoenix 3061761 CAD data International.stpPhoenix 3061761 Manufacturers declaration International-2.pdfPhoenix 3061761 Manufacturers declaration International.pdfPhoenix 3061761 Safety note English.pdfPhoenix 3061761 Tender Text English.zip
