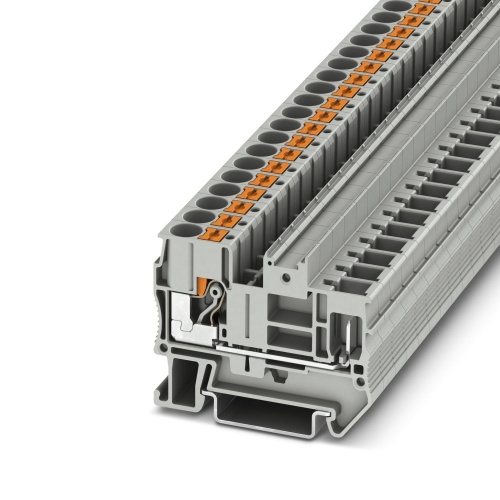

Phoenix Contact 3061758 Feed-through terminal block PT 6/1P
Normally In Stock
Code: 42425
PT 6/1P Phoenix Contact 3061758 Feed Through Terminal Block - PT 6/1P Push-In Connection 1 Level 3.5 mm with 2 Connections. Not Grounded, Not Fused Gray. 1000 V, 41 A max rating.
Condition: New
Usually Ships Same day or Next Day$3.53
Sale Price
$2.94
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3061758 A feed-through terminal block has a nominal voltage of 1000 V and can handle a nominal current of 41 A, accommodating two connections via push-in or plug connections. The rated cross section ranges from 6 mm2 to 10 mm2, with mounting types available in NS 35/7.5 and NS 35/15 configurations, and is typically color-coded gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Terminal Block Amperage
41 Amp
Terminal Block Connection Method
Plug Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
Downloads
Phoenix 3061758 CAD data International.dxfPhoenix 3061758 CAD data International.pdfPhoenix 3061758 CAD data International.stpPhoenix 3061758 Manufacturers declaration International-2.pdfPhoenix 3061758 Manufacturers declaration International.pdfPhoenix 3061758 Safety note English.pdfPhoenix 3061758 Tender Text English.zip
