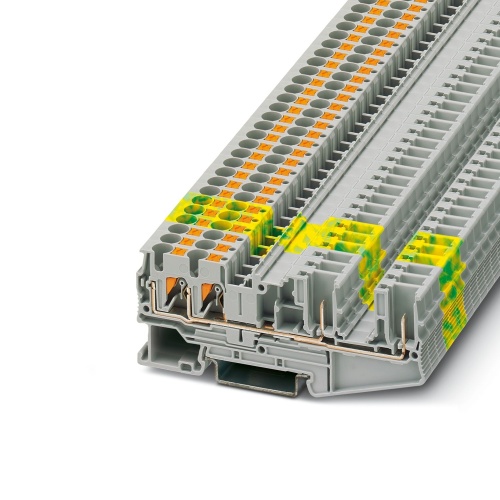

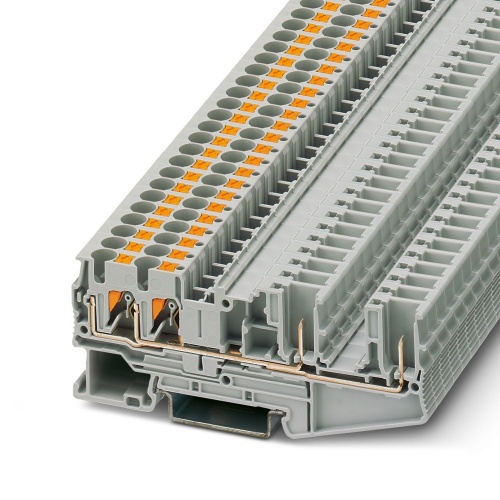

Phoenix Contact 3211991 Feed-through terminal block PT 4-QUATTRO/2P
Normally In Stock
Code: 42423
PT 4-QUATTRO/2P Phoenix Contact 3211991 Feed Through Terminal Block - PT 4-QUATTRO/2P Push-In Connection 1 Level 3.5 mm with 4 Connections. Not Grounded, Not Fused Gray. 800 V, 32 A max rating.
Condition: New
Usually Ships Same day or Next Day$3.34
Sale Price
$2.78
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211991 For a feed-through terminal block, the maximum load current should not surpass the combined current of all connected wires, with the plug's voltage and current determining these values. The standard parameters include a nominal voltage of 800 volts and a nominal current of 32 amps, utilizing push-in or plug connections with a cross-sectional rating ranging from 0.2 to 6 square millimeters, mounted on either NS 35/7.5 or NS 35/15 systems, and identified by a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Downloads
Phoenix 3211991 CAD data International.dxfPhoenix 3211991 CAD data International.pdfPhoenix 3211991 CAD data International.stpPhoenix 3211991 Manufacturers declaration International-2.pdfPhoenix 3211991 Manufacturers declaration International.pdfPhoenix 3211991 Safety note English.pdfPhoenix 3211991 Tender Text English.zip
