Phoenix Contact 3212201 Feed-through terminal block PT 4-TWIN/1P BU
Normally In Stock
Code: 42421
PT 4-TWIN/1P BU Phoenix Contact 3212201 Feed Through Terminal Block - PT 4-TWIN/1P BU Push-In Connection 1 Level 3.5 mm with 3 Connections. Not Grounded, Not Fused Blue. 800 V, 32 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.60
Sale Price
$2.17
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

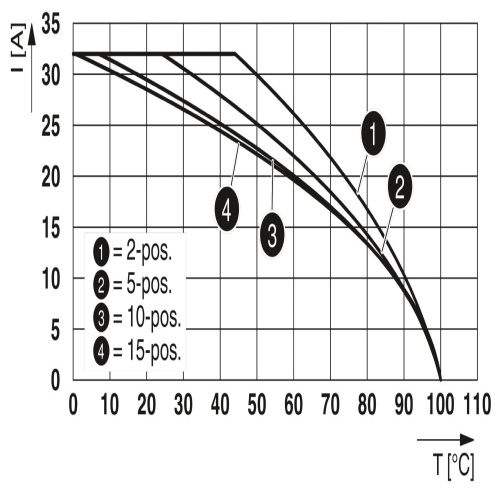

Phoenix Contact 3212201 The maximum load current should not exceed the total current of all connected conductors and is influenced by the type of plug used with current and voltage values determined accordingly, a max. load current limit is typically set to 800 V and 32 A, while connections can be made via push-in or plug connection methods, suitable for cross sections ranging from 0.2 mm² to 6 mm², with mounting options including NS 35/7,5 and NS 35/15, and characterized by a blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Downloads
Phoenix 3212201 CAD data International.dxfPhoenix 3212201 CAD data International.pdfPhoenix 3212201 CAD data International.stpPhoenix 3212201 Manufacturers declaration International-2.pdfPhoenix 3212201 Manufacturers declaration International.pdfPhoenix 3212201 Safety note English.pdfPhoenix 3212201 Tender Text English.zip
