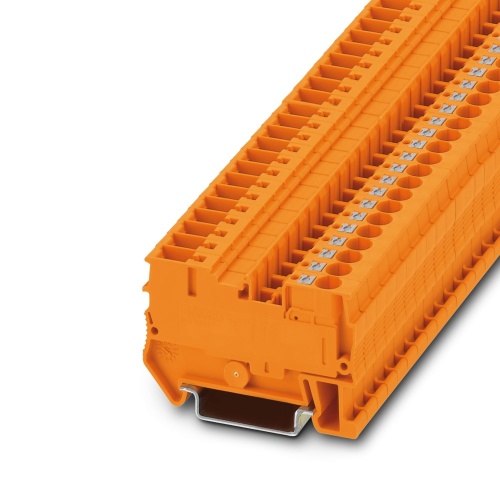

Phoenix Contact 3212008 Feed-through terminal block PT 4/1P OG
Normally In Stock
Code: 42419
PT 4/1P OG Phoenix Contact 3212008 Feed Through Terminal Block - PT 4/1P OG Push-In Connection 1 Level 3.5 mm with 2 Connections. Not Grounded, Not Fused Orange. 800 V, 32 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.06
Sale Price
$1.72
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212008 A feed-through terminal block has a nominal voltage of 800 V and a maximum current capacity of 32 A, with two connections made using a push-in/plug connection method. The rated cross-sectional area is 4 mm2, but the actual cross-section can vary between 0.2 mm2-6 mm2, depending on the specific application. The terminal block is mounted using either NS 35/7.5 or NS 35/15 configurations, and it comes in an orange color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Orange
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
