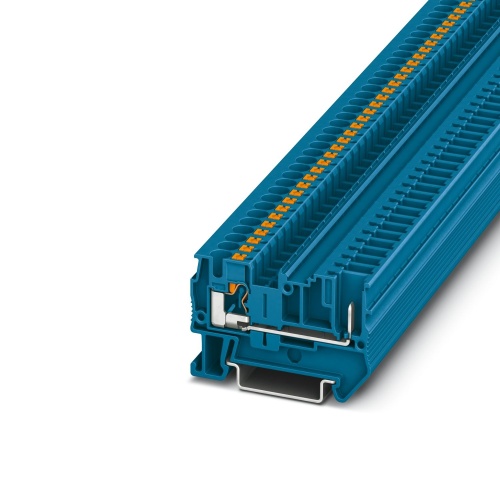

Phoenix Contact 3212007 Feed-through terminal block PT 4/1P BU
Normally In Stock
Code: 42418
PT 4/1P BU Phoenix Contact 3212007 Feed Through Terminal Block - PT 4/1P BU Push-In Connection 1 Level 3.5 mm with 2 Connections. Not Grounded, Not Fused Blue. 800 V, 32 A max rating.
Condition: New
Usually Ships Same day or Next Day$1.97
Sale Price
$1.64
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212007 A feed-through terminal block with a nominal voltage of 800 V and a maximum current rating of 32 A has two push-in/plug connections, with a rated cross-sectional area of 4 mm² and varying sizes from 0.2 to 6 mm². It is mounted using the NS 35/7.5 or NS 35/15 types and features a blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
Downloads
Phoenix 3212007 CAD data International.dxfPhoenix 3212007 CAD data International.pdfPhoenix 3212007 CAD data International.stpPhoenix 3212007 Manufacturers declaration International-2.pdfPhoenix 3212007 Manufacturers declaration International.pdfPhoenix 3212007 Safety note English.pdfPhoenix 3212007 Tender Text English.zip
