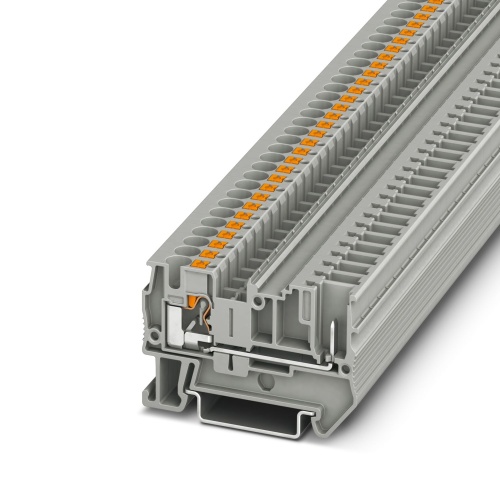

Phoenix Contact 3211937 Feed-through terminal block PT 4/1P
Normally In Stock
Code: 42417
PT 4/1P Phoenix Contact 3211937 Feed Through Terminal Block - PT 4/1P Push-In Connection 1 Level 3.5 mm with 2 Connections. Not Grounded, Not Fused Gray. 800 V, 32 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.02
Sale Price
$1.68
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211937 The feed-through terminal block has a nominal voltage of 800 V and a nominal current capacity of 32 A, accommodating up to two connections via push-in/plug connections. The rated cross-section ranges from 0.2 mm² to 6 mm², while the mounting type is specified as NS 35/7.5 or NS 35/15, with the overall color being gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
Tested for railway applications
Downloads
Phoenix 3211937 CAD data International.dxfPhoenix 3211937 CAD data International.pdfPhoenix 3211937 CAD data International.stpPhoenix 3211937 Manufacturers declaration International-2.pdfPhoenix 3211937 Manufacturers declaration International.pdfPhoenix 3211937 Safety note English.pdfPhoenix 3211937 Tender Text English.zip
