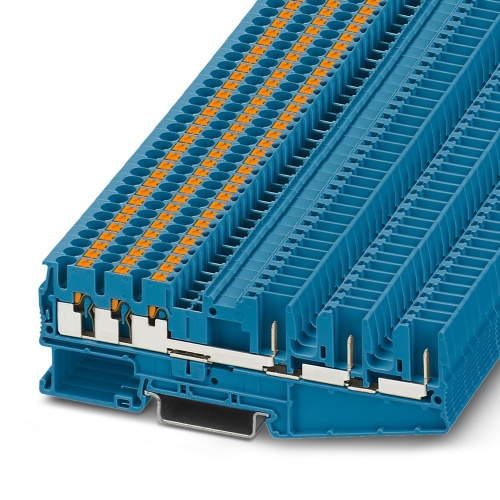

Phoenix Contact 3040048 Feed-through terminal block PT 2,5-HEXA/3P BU
Normally In Stock
Code: 42414
PT 2,5-HEXA/3P BU Phoenix Contact 3040048 Feed Through Terminal Block - PT 2,5-HEXA/3P BU Push-In Connection 1 Level 3.5 mm with 6 Connections. Not Grounded, Not Fused Blue. 500 V, 24 A max rating.
Condition: New
Usually Ships Same day or Next Day$3.68
Sale Price
$3.07
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3040048 A feed-through terminal block has a nominal voltage of 500V and a maximum current capacity of 24A, accommodating six push-in/plug connections. The cross-sectional area ranges from 0.14mm² to 4mm² for the first, second, and third levels of mounting, with the base model featuring an NS35/7.5 and/or NS35/15 mounting type, distinguished by a blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
6
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
