Phoenix Contact 3040044 Feed-through terminal block PT 2,5-HEXA/3P
Normally In Stock
Code: 42413
PT 2,5-HEXA/3P Phoenix Contact 3040044 Feed Through Terminal Block - PT 2,5-HEXA/3P Push-In Connection 1 Level 3.5 mm with 6 Connections. Not Grounded, Not Fused Gray. 500 V, 24 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$3.68
Sale Price
$3.07
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3040044 A feed-through terminal block with a nominal voltage of 500V and a nominal current capacity of 24A features six connections utilizing push-in/plug connections. The rated cross-sectional area ranges from 0.14mm² to 4mm² for the first, second, and third levels of mounting, corresponding to the NS35/7.5 and NS35/15 mounting types, and has a color palette including gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
6
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features

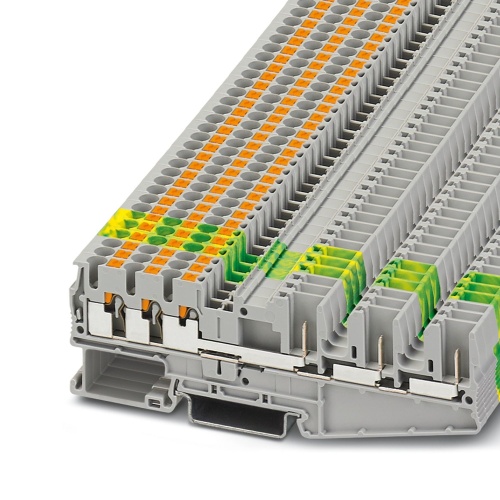

The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
