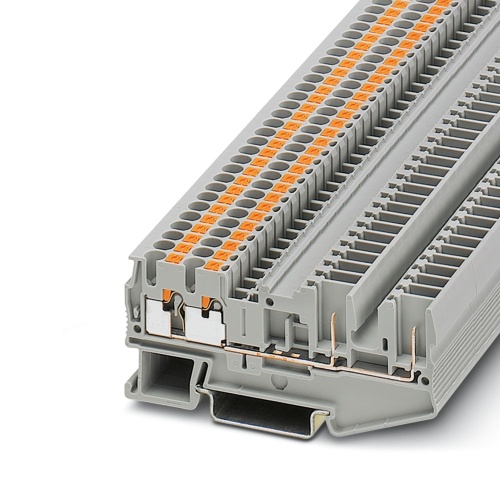

Phoenix Contact 3209662 Feed-through terminal block PT 2,5-QUATTRO/2P
Normally In Stock
Code: 42411
PT 2,5-QUATTRO/2P Phoenix Contact 3209662 Feed Through Terminal Block - PT 2,5-QUATTRO/2P Push-In Connection 1 Level 3.5 mm with 4 Connections. Not Grounded, Not Fused Gray. 500 V, 24 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.80
Sale Price
$2.33
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3209662 This feed-through terminal block features a nominal voltage of 500 V and a maximum current capacity of 24 A, accommodating up to four connections via a push-in/plug connection system. The rated cross-section for the connections ranges from 0.14 mm2 to 4 mm2, with multiple levels available, while the mounting type is designated as NS 35/7,5 or NS 35/15 and characterized by a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
Tested for railway applications
Downloads
Phoenix 3209662 CAD data International.dxfPhoenix 3209662 CAD data International.pdfPhoenix 3209662 CAD data International.stpPhoenix 3209662 Manufacturers declaration International-2.pdfPhoenix 3209662 Manufacturers declaration International.pdfPhoenix 3209662 Safety note English.pdfPhoenix 3209662 Tender Text English.zip
