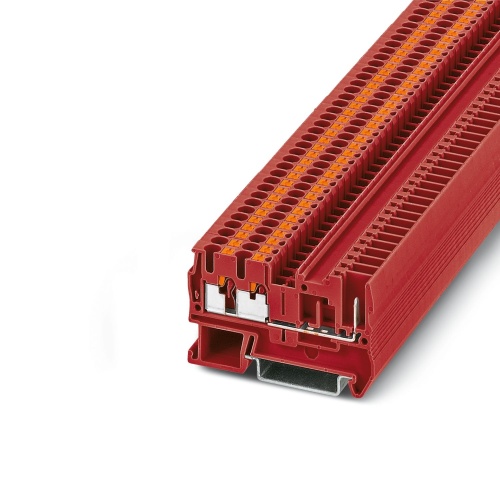

Phoenix Contact 3209634 Feed-through terminal block PT 2,5-TWIN/1P RD
Normally In Stock
Code: 42407
PT 2,5-TWIN/1P RD Phoenix Contact 3209634 Feed Through Terminal Block - PT 2,5-TWIN/1P RD Push-In Connection 1 Level 3.5 mm with 3 Connections. Not Grounded, Not Fused Red. 500 V, 24 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.10
Sale Price
$1.75
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3209634 A feed-through terminal block features a nominal voltage of 500 V and a nominal current capacity of 24 A with three connections available. The connection method is push-in/plug, while the rated cross-section varies from 0.14 mm2 to 4 mm2, depending on the specific model. Mounting options include NS 35/7,5 and NS 35/15, with an overall color palette dominated by red.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Red
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
Downloads
Phoenix 3209634 CAD data International.dxfPhoenix 3209634 CAD data International.pdfPhoenix 3209634 CAD data International.stpPhoenix 3209634 Manufacturers declaration International-2.pdfPhoenix 3209634 Manufacturers declaration International.pdfPhoenix 3209634 Safety note English.pdfPhoenix 3209634 Tender Text English.zip
