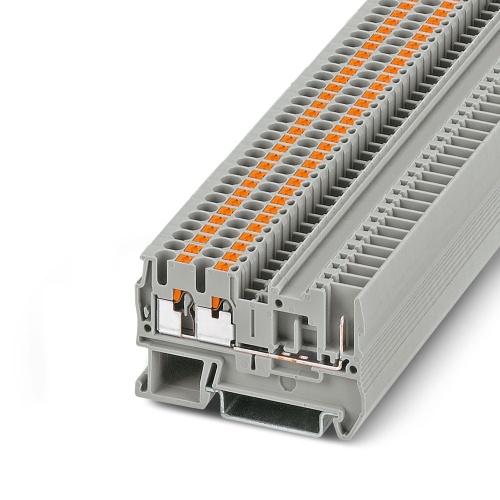

Phoenix Contact 3209633 Feed-through terminal block PT 2,5-TWIN/1P
Normally In Stock
Code: 42405
PT 2,5-TWIN/1P Phoenix Contact 3209633 Feed Through Terminal Block - PT 2,5-TWIN/1P Push-In Connection 1 Level 3.5 mm with 3 Connections. Not Grounded, Not Fused Gray. 500 V, 24 A max rating.
Condition: New
Usually Ships Same day or Next Day$1.97
Sale Price
$1.64
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3209633 A feed-through terminal block has a nominal voltage of 500V and can handle a nominal current of 24A, accommodating up to 3 connections at one position with push-in/plug connections. The rated cross-section is 2.5mm², allowing for sizes between 0.14mm² to 4mm², and it can be mounted using the NS35/7.5 or NS35/15 types, with a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
Downloads
Phoenix 3209633 CAD data International.dxfPhoenix 3209633 CAD data International.pdfPhoenix 3209633 CAD data International.stpPhoenix 3209633 Manufacturers declaration International-2.pdfPhoenix 3209633 Manufacturers declaration International.pdfPhoenix 3209633 Safety note English.pdfPhoenix 3209633 Tender Text English.zip
