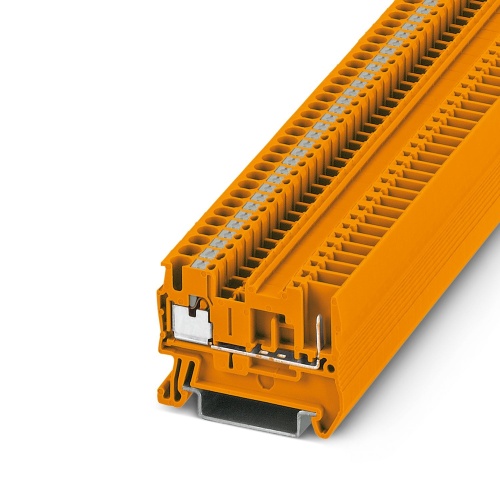

Phoenix Contact 3210047 Feed-through terminal block PT 2,5/1P OG
Normally In Stock
Code: 42404
PT 2,5/1P OG Phoenix Contact 3210047 Feed Through Terminal Block - PT 2,5/1P OG Push-In Connection 1 Level 3.5 mm with 2 Connections. Not Grounded, Not Fused Orange. 500 V, 24 A max rating.
Condition: New
Usually Ships Same day or Next Day$1.51
Sale Price
$1.26
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210047 A feed-through terminal block with a nominal voltage of 500V and a maximum current rating of 24A has two connections that can be made using a push-in/plug connection method. The rated cross-sectional area is 2.5mm², ranging from 0.14mm² to 4mm², allowing for various wire sizes to be connected. Mounting options are available in two types: NS 35/7.5 and NS 35/15, with the latter also featuring an orange color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Orange
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Plug-In Terminal Block
Features
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
Downloads
Phoenix 3210047 CAD data International.dxfPhoenix 3210047 CAD data International.pdfPhoenix 3210047 CAD data International.stpPhoenix 3210047 Manufacturers declaration International-2.pdfPhoenix 3210047 Manufacturers declaration International.pdfPhoenix 3210047 Safety note English.pdfPhoenix 3210047 Tender Text English.zip
