Code: 42328
Phoenix Contact 3210442 Multi-level terminal block PT 4-PE/3L
Normally In Stock
Phoenix Contact PT 4-PE/3L Motor terminal block - Gray - 3210442
Condition: New
Usually Ships Same day or Next Day$15.53
Sale Price
$12.94
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

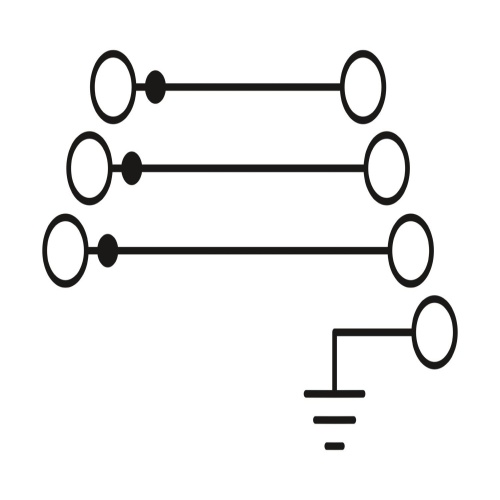

Phoenix Contact 3210442 A four-level motor terminal block features a push-in connection method and has varying cross-sectional areas ranging from 0.2-6 mm², corresponding to AWG ratings of 24-10. The block's dimensions are 6.2 mm in width and 95.4 mm in height, with a gray color and two mounting types: NS 35/7,5 and NS 35/15.
Specifications
Terminal Block Width
6.2 mm
Terminal Block Component Color
Gray
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Motor Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
