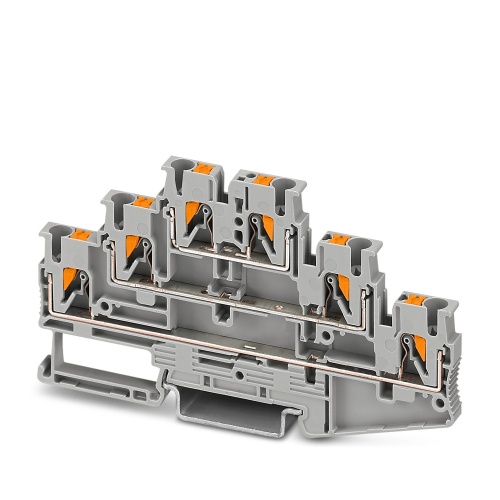

Phoenix Contact 3210499 Multi-level terminal block PT 2,5-3L
Normally In Stock
Code: 42320
PT 2,5-3L Phoenix Contact 3210499 Multi-level Terminal Block - PT 2,5-3L Push-In Connection 1 Level 5.2 mm with 6 Connections. Not Grounded, Not Fused Gray. 500 V, 24 A max rating.
Condition: New
Usually Ships Same day or Next Day$6.56
Sale Price
$5.47
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210499 The terminal block features a multi-level design with a nominal voltage of 500 V and a nominal current capacity of 20 A, utilizing push-in connections for levels one, two, and three. The rated cross-sectional area is 2.5 mm², while the available cross-sections range from 0.14 mm² to 4 mm². The terminal block can be mounted using NS 35/7,5 or NS 35/15, and its casing color is gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Multi-Level Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
Downloads
Phoenix 3210499 CAD data International.dxfPhoenix 3210499 CAD data International.pdfPhoenix 3210499 CAD data International.stpPhoenix 3210499 Certification English.pdfPhoenix 3210499 Certification International.pdfPhoenix 3210499 Manufacturers declaration International-2.pdfPhoenix 3210499 Manufacturers declaration International-3.pdfPhoenix 3210499 Manufacturers declaration International-4.pdfPhoenix 3210499 Manufacturers declaration International-5.pdfPhoenix 3210499 Manufacturers declaration International.pdfPhoenix 3210499 Safety note English.pdfPhoenix 3210499 Tender Text English.zipPhoenix 3210499 User instructions for the Ex Area International.pdf
