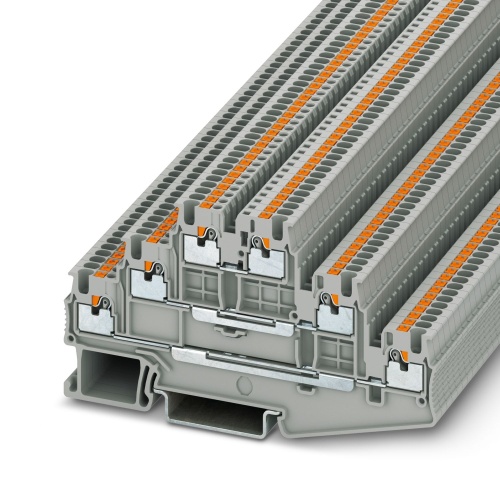

Phoenix Contact 3213713 Multi-level terminal block PT 1,5/S-3L
Normally In Stock
Code: 42317
PT 1,5/S-3L Phoenix Contact 3213713 Multi-level Terminal Block - PT 1,5/S-3L Push-In Connection 1 Level 3.5 mm with 6 Connections. Not Grounded, Not Fused Gray. 400 V, 15 A max rating.
Condition: New
Usually Ships Same day or Next Day$5.35
Sale Price
$4.46
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3213713 The terminal block features a multi-level design with a nominal voltage of 500 V and a maximum current rating of 15 A, utilizing a push-in connection method for a single level. The rated cross-sectional area is 1.5 mm2, but can accommodate various cross-sectional areas between 0.14 mm2 to 1.5 mm2, with the device also coming in different mounting types, such as NS 35/7.5 and NS 35/15, while maintaining a standard gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Connections
6
Terminal Block Width
3.5 mm
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
15 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Multi-Level Terminal Block
Features
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
Downloads
Phoenix 3213713 CAD data International.dxfPhoenix 3213713 CAD data International.pdfPhoenix 3213713 CAD data International.stpPhoenix 3213713 Manufacturers declaration International-2.pdfPhoenix 3213713 Manufacturers declaration International.pdfPhoenix 3213713 Product Information English.pdfPhoenix 3213713 Safety note English.pdfPhoenix 3213713 Tender Text English.zip
