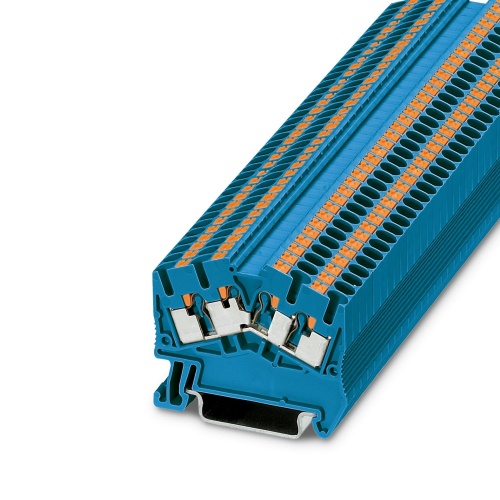

Phoenix Contact 3212002 Feed-through terminal block PTS 2,5-QUATTRO BU
Normally In Stock
Code: 42309
PTS 2,5-QUATTRO BU Phoenix Contact 3212002 Feed Through Terminal Block - PTS 2,5-QUATTRO BU Push-In Connection 1 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Blue. 800 V, 28 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.92
Sale Price
$2.43
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212002 This feed-through terminal block features a nominal voltage of 800 V and a nominal current capacity of 24 A, accommodating up to four connections through its push-in connection method. The rated cross-sectional area for the insulation is between 0.14 mm2 and 4 mm2, with the overall level being 1 unit. Mounting options include NS 35/7.5 and NS 35/15, with a color designation of blue.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method

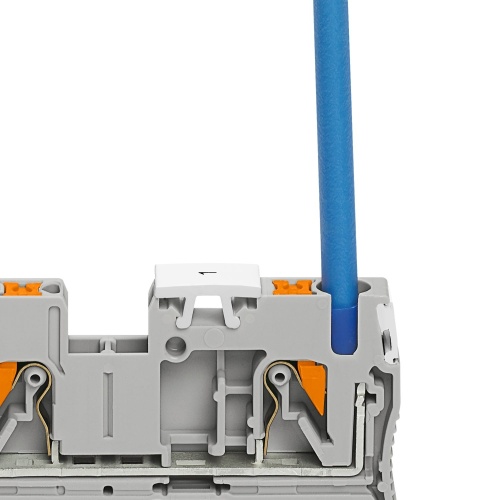

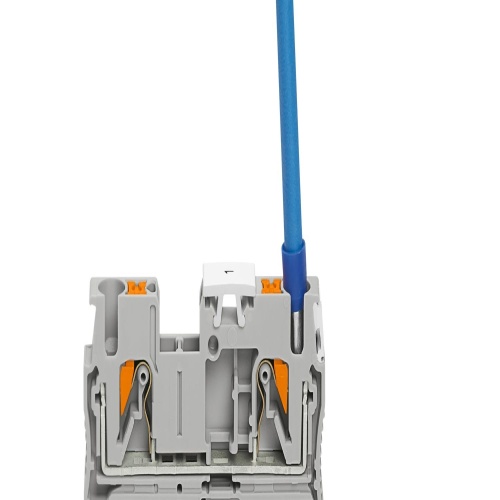

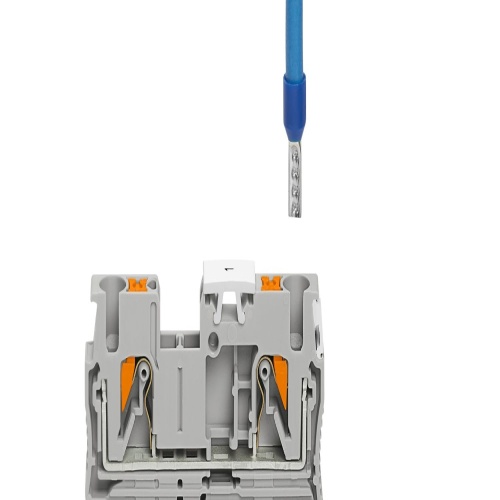

Push-In Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
2, 3, and 4-conductor terminal blocks with the same shape
Ground terminal blocks of the same shape are available
The PTS 2,5, which is equipped with four bridge shafts, offers a wide range of potential bridging options
Angled conductor entry for use in flat terminal boxes
Large space saving when used in concealed wiring systems
