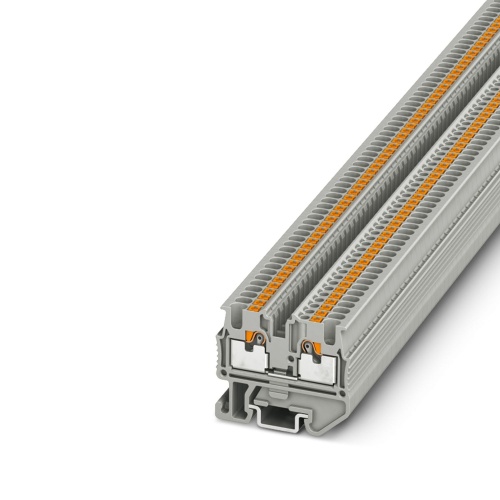

Phoenix Contact 3248100 Mini feed-through terminal block MPT 1,5/S
Normally In Stock
Code: 42237
MPT 1,5/S Phoenix Contact 3248100 Mini Feed Through Terminal Block - MPT 1,5/S Push-In Connection 1 Level 3.5 mm with 2 Connections. Not Grounded, Not Fused Gray. 500 V, 17.5 A max rating.
Condition: New
Usually Ships Same day or Next Day$1.27
Sale Price
$1.06
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3248100 A mini feed-through terminal block with specific characteristics is available, featuring a nominal voltage of 500 V and a maximum current capacity of 17.5 A, accommodating two connections that can be secured via push-in connection. The rated cross-sectional area for each level ranges from 0.14 mm2 to 1.5 mm2, allowing for secure mounting using the NS 15 type, with an overall color tone of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Width
3.5 mm
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Significant space savings with the compact design
Increased flexibility with single function shafts
Clear arrangement with marking grooves on each individual terminal point
Time-saving conductor connection with tool-free and maintenance-free Push-in connection technology
Testing options for all common test probes
Downloads
Phoenix 3248100 CAD data International.dxfPhoenix 3248100 CAD data International.pdfPhoenix 3248100 CAD data International.stpPhoenix 3248100 Certification English.pdfPhoenix 3248100 Certification International.pdfPhoenix 3248100 Manufacturers declaration International-2.pdfPhoenix 3248100 Manufacturers declaration International.pdfPhoenix 3248100 Safety note English.pdfPhoenix 3248100 Tender Text English.zipPhoenix 3248100 User instructions for the Ex Area International.pdf
