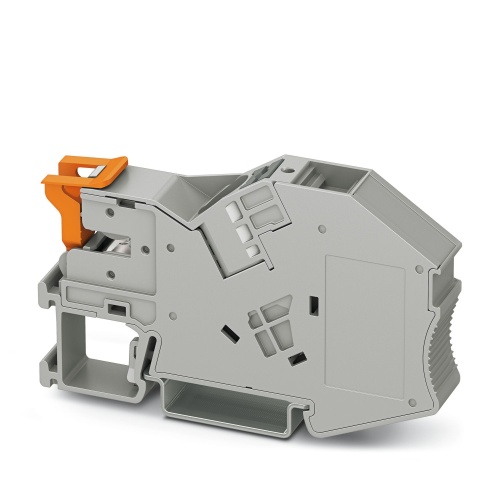

Phoenix Contact 1030130 Installation terminal block PTI 16-NLS-FI
Normally In Stock
Code: 42222
PTI 16-NLS-FI Phoenix Contact 1030130 Installation Terminal Block - PTI 16-NLS-FI Push-In Connection 1 Level 12.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 1000 V, 76 A max rating.
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$8.70
Sale Price
$7.25
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1030130 The installation terminal block features a push-in connection and end bracket function with specified voltage and current ratings of 1000 V and 70 A respectively. It is designed for one-level connections and has a range of cross-sections from 0.5 mm2 to 25 mm2, while its mounting type is either NS 35/7,5 or NS 35/15, with the latter option being distinguished by its color as gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
12.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Min Wire Size
20
Terminal Block Max Wire Size
4
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
70 Amp
Sub Component
Installation Terminal Block
Features
Maintenance-free connection technologies with the Reakdyn principle for screw terminal blocks and Push-in technology
Fast and reliable neutral conductor disconnection with screw-free disconnect slide
Individual potential distribution with a double function shaft on each level and the standardized bridge accessories
Simple testing options with integrated test points at every terminal point
Clear distribution solutions with standardized marking accessories
