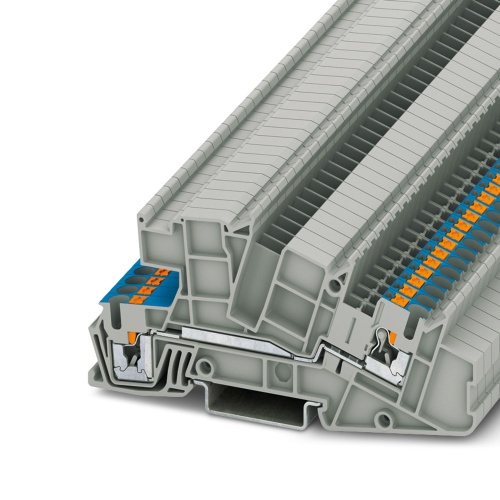

Phoenix Contact 3213952 Installation terminal block PTI 2,5-N
Normally In Stock
Code: 42214
PTI 2,5-N Phoenix Contact 3213952 Installation Terminal Block - PTI 2,5-N Push-In Connection 1 Level 5.2 mm with 2 Connections. Not Grounded, Not Fused Gray-Blue. 400 V, phase conductor/PE, 250 V (phase conductor/N), 30 A max rating.
Condition: New
Usually Ships Same day or Next Day$1.99
Sale Price
$1.66
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3213952 The installation terminal block features a nominal voltage of 400 V and a maximum current capacity of 24 A, with push-in connections available for levels one, two, and three. It has a rated cross-sectional area of 4 mm2, spanning from 0.14 mm2 to 4 mm2, and is compatible with mounting types NS 35/7,5 and NS 35/15, identified by its distinctive gray/blue coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
2
Terminal Block Number of Levels
3
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Terminal Block Component Color
Gray/Blue
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Features
Double function shafts on all levels
