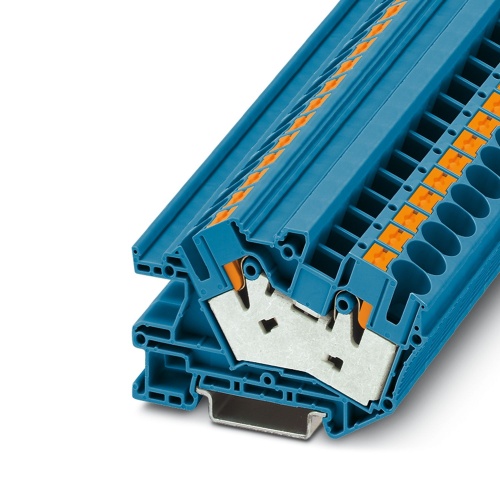

Phoenix Contact 3214023 Installation terminal block PTI 16/S BU
Normally In Stock
Code: 42210
PTI 16/S BU Phoenix Contact 3214023 Installation Terminal Block - PTI 16/S BU Push-In Connection 1 Level 10.2 mm with 2 Connections. Not Grounded, Not Fused Blue. 500 V, 76 A max rating.
Condition: New
Usually Ships Same day or Next Day$5.65
Sale Price
$4.71
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214023 The installation terminal block has a nominal voltage of 500 V and can handle a nominal current of 76 A, featuring push-in connections that allow for easy installation at one level, with an approved cross section range from 0.5 mm2 to 16 mm2 and is mounted using the NS 35/7.5 or NS 35/15 type, with a blue color designation.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
4
Terminal Block Amperage
76 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Features
Compatible with all Phoenix Contact installation terminal blocks
As well as the testing facility in the function shaft, each terminal point has a test contact
Each terminal point can be clearly labeled and easily recognized in every terminal block mounting position
Compact design tailored to distribution boards
The new Push-in connection technology enables easy, direct insertion of solid and stranded conductors with ferrules with a cross section of 0.34 mm² or higher
