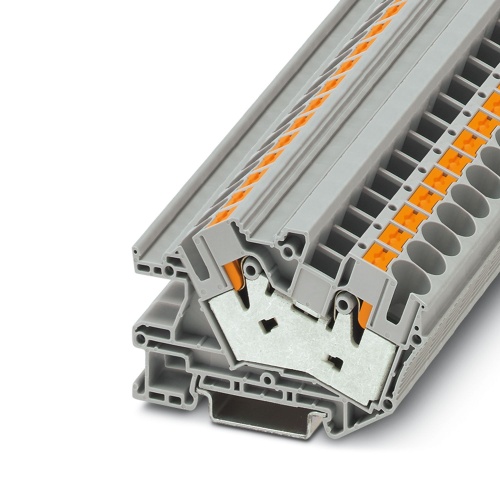

Phoenix Contact 3214029 Installation terminal block PTI 16/S
Normally In Stock
Code: 42209
PTI 16/S Phoenix Contact 3214029 Installation Terminal Block - PTI 16/S Push-In Connection 1 Level 10.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 500 V, 76 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$5.65
Sale Price
$4.71
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214029 The installation terminal block has a nominal voltage of 500 V and a nominal current capacity of 76 A, featuring a push-in connection with one level. It has a rated cross section of 16 mm2, spanning from 0.5 mm2 to 16 mm2 in cross-section size, and is mounted using type NS 35/7.5 or NS 35/15 fixtures, with a standard gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
4
Terminal Block Amperage
76 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Features
Compatible with all Phoenix Contact installation terminal blocks
Each terminal point can be clearly labeled and easily recognized in every terminal block mounting position
As well as the testing facility in the function shaft, each terminal point has a test contact
Compact design tailored to distribution boards
The new Push-in connection technology enables easy, direct insertion of solid and stranded conductors with ferrules with a cross section of 0.34 mm² or higher
