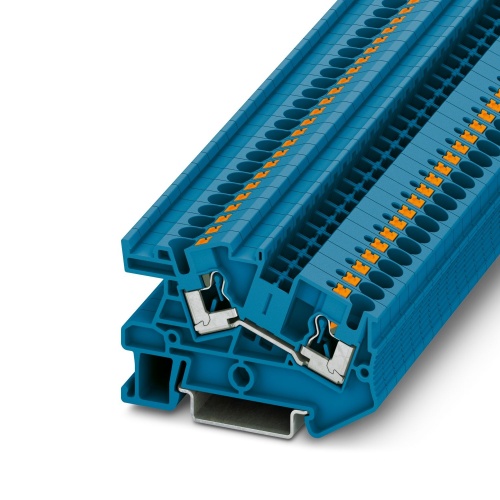

Phoenix Contact 3213971 Installation terminal block PTI 4 BU
Normally In Stock
Code: 42206
PTI 4 BU Phoenix Contact 3213971 Installation Terminal Block - PTI 4 BU Push-In Connection 1 Level 6.2 mm with 2 Connections. Not Grounded, Not Fused Blue. 800 V, 32 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.29
Sale Price
$1.91
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3213971 The terminal block has a standard installation configuration, characterized by an 800V nominal voltage and a maximum current of 32A. It features push-in connections at one level, with cross-sectional areas ranging from 0.2 mm² to 6 mm², allowing for various wiring configurations. The mounting type is available in two options, NS 35/7.5 and NS 35/15, while the terminal block itself is colored blue.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Features
Compatible with all Phoenix Contact installation terminal blocks
Each terminal point can be clearly labeled and easily recognized in every terminal block mounting position
As well as the testing facility in the function shaft, each terminal point has a test contact
Compact design tailored to distribution boards
The new Push-in connection technology enables easy, direct insertion of solid and stranded conductors with ferrules with a cross section of 0.34 mm² or higher
