Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 42204

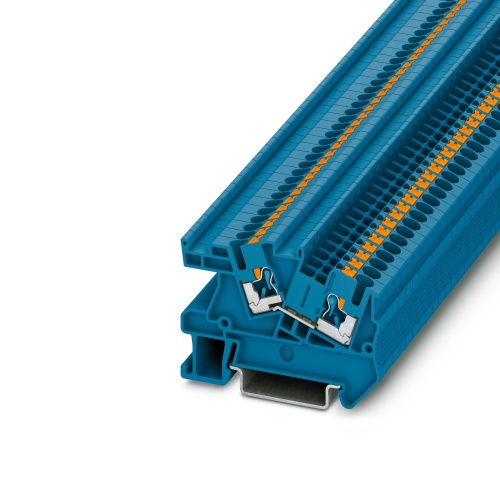

Phoenix Contact 3213969 Installation terminal block PTI 2,5 BU
Normally In Stock
PTI 2,5 BU Phoenix Contact 3213969 Installation Terminal Block - PTI 2,5 BU Push-In Connection 1 Level 5.2 mm with 2 Connections. Not Grounded, Not Fused Blue. 800 V, 24 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$2.16
Sale Price
$1.80
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3213969 The installation terminal block features a nominal voltage of 800 V and a nominal current capacity of 24 A, allowing for easy push-in connections at one level. It is rated for cross-sections ranging from 0.14 mm2 to 4 mm2, and can be mounted using the NS 35/7.5 or NS 35/15 mounting types, with a blue color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Features
Compatible with all Phoenix Contact installation terminal blocks
As well as the testing facility in the function shaft, each terminal point has a test contact
Each terminal point can be clearly labeled and easily recognized in every terminal block mounting position
Compact design tailored to distribution boards
The new Push-in connection technology enables easy, direct insertion of solid and stranded conductors with ferrules with a cross section of 0.34 mm² or higher
