Code: 42203

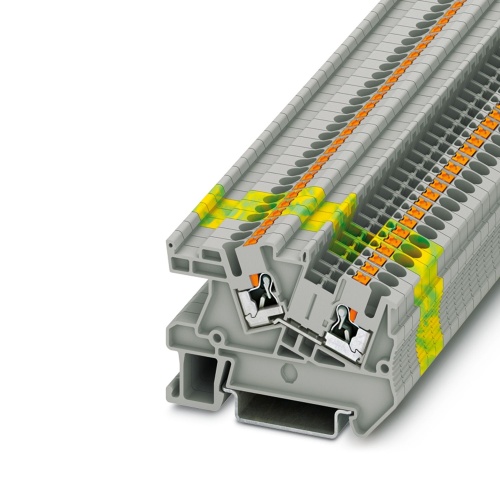

Phoenix Contact 3213968 Installation terminal block PTI 2,5
Normally In Stock
PTI 2,5 Phoenix Contact 3213968 Installation Terminal Block - PTI 2,5 Push-In Connection 1 Level 5.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 800 V, 24 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$2.16
Sale Price
$1.80
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3213968 The installation terminal block has a nominal voltage of 800V and a nominal current capacity of 24A, featuring push-in connections at one level. The rated cross-sectional area is 4mm2, with actual areas ranging from 0.14mm2 to 4mm2. It utilizes the NS35/7.5 and NS35/15 mounting types and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Features
Compatible with all Phoenix Contact installation terminal blocks
Each terminal point can be clearly labeled and easily recognized in every terminal block mounting position
As well as the testing facility in the function shaft, each terminal point has a test contact
Compact design tailored to distribution boards
The new Push-in connection technology enables easy, direct insertion of solid and stranded conductors with ferrules with a cross section of 0.34 mm² or higher
