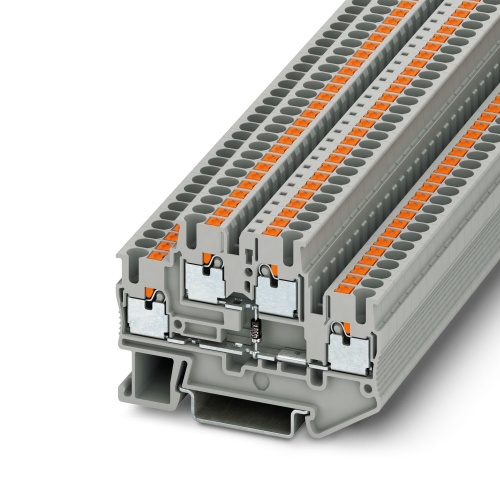

Phoenix Contact 3210923 Component terminal block PTTB 2,5-DIO/O-U
Normally In Stock
Code: 42180
PTTB 2,5-DIO/O-U Phoenix Contact 3210923 Component Terminal Block - PTTB 2,5-DIO/O-U Push-In Connection 1 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 500 V, 0.5 A max rating.
Condition: New
Usually Ships Same day or Next Day$10.31
Sale Price
$8.59
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

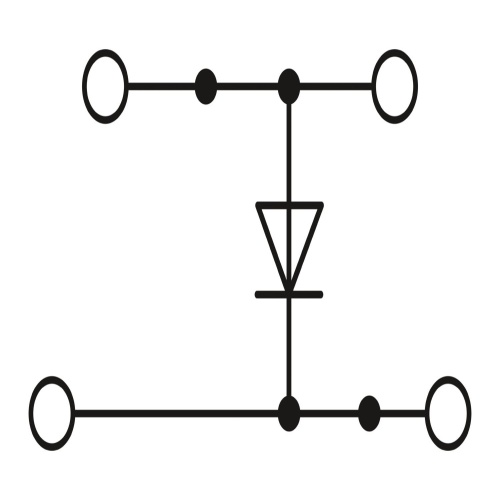

Phoenix Contact 3210923 A component terminal block features an integrated 1N4007 diode with a nominal current rating of 0.5 A and four push-in connections. The rated cross sections for the first and second levels are 0.14 mm2-4 mm2, while the overall cross section is 2.5 mm2. Mounting options include NS35/7.5 and NS35/15, and the terminal block has a gray color.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
0.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
Downloads
Phoenix 3210923 CAD data International.dxfPhoenix 3210923 CAD data International.pdfPhoenix 3210923 CAD data International.stpPhoenix 3210923 Manufacturers declaration International-2.pdfPhoenix 3210923 Manufacturers declaration International-3.pdfPhoenix 3210923 Manufacturers declaration International.pdfPhoenix 3210923 Safety note English.pdfPhoenix 3210923 Tender Text English.zip
