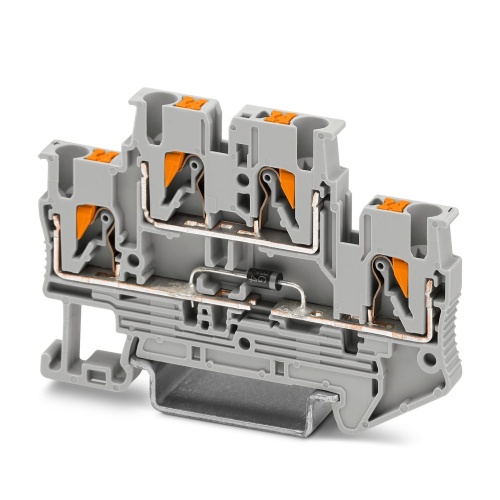

Phoenix Contact 3211427 Component terminal block PTTB 2,5-DIO/UL-UR
Normally In Stock
Code: 42179
PTTB 2,5-DIO/UL-UR Phoenix Contact 3211427 Component Terminal Block - PTTB 2,5-DIO/UL-UR Push-In Connection 1 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 500 V, 0.5 A max rating.
Condition: New
Usually Ships Same day or Next Day$10.01
Sale Price
$8.34
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

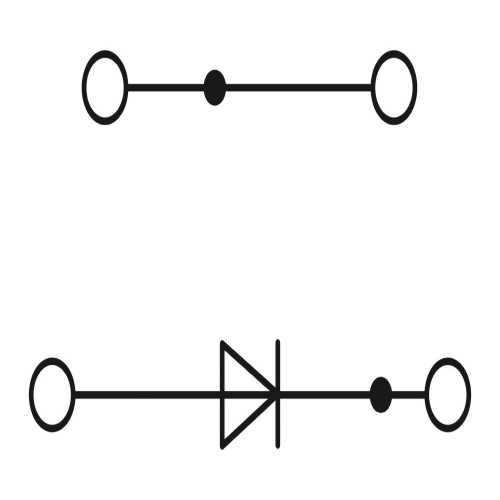

Phoenix Contact 3211427 The component terminal block has a built-in 1N4007 diode with a nominal current rating of 0.5 A and comes in four connection options via push-in connections, with cross-sectional ratings ranging from 0.14 mm2 to 4 mm2 for the first and second levels of mounting, and is available in two different mounting types, NS 35/7,5 and NS 35/15, finished in a gray color.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
0.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
Downloads
Phoenix 3211427 CAD data International.dxfPhoenix 3211427 CAD data International.pdfPhoenix 3211427 CAD data International.stpPhoenix 3211427 Manufacturers declaration English.pdfPhoenix 3211427 Manufacturers declaration International-2.pdfPhoenix 3211427 Manufacturers declaration International.pdfPhoenix 3211427 Safety note English.pdfPhoenix 3211427 Tender Text English.zip
