Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

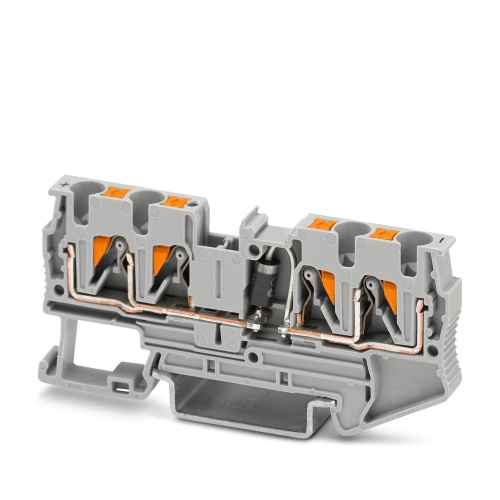

Phoenix Contact 3211919 Component terminal block PT 4-QUATTRO-DIO 1N 5408/L-R
Normally In Stock
Code: 42174
PT 4-QUATTRO-DIO 1N 5408/L-R Phoenix Contact 3211919 Component Terminal Block - PT 4-QUATTRO-DIO 1N 5408/L-R Push-In Connection 1 Level 6.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 800 V, 1.5 A max rating.
Condition: New
Usually Ships Same day or Next Day$8.58
Sale Price
$7.15
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

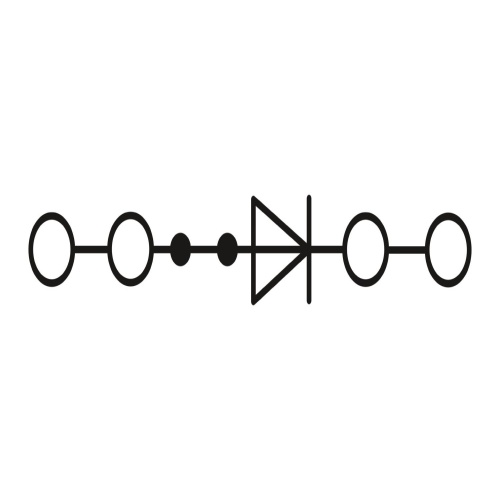

Phoenix Contact 3211919 The component terminal block features an integrated diode 1N5408 with a maximum current rating of 1.5 A and supports up to 4 connections via push-in connection method. The rated cross-sectional area is 4 mm2, with a range of 0.2-6 mm2, and the mounting type includes NS 35/7,5 and NS 35/15, while its color is gray.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
1.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
Downloads
Phoenix 3211919 CAD data International.dxfPhoenix 3211919 CAD data International.pdfPhoenix 3211919 CAD data International.stpPhoenix 3211919 Manufacturers declaration English.pdfPhoenix 3211919 Manufacturers declaration International-2.pdfPhoenix 3211919 Manufacturers declaration International.pdfPhoenix 3211919 Safety note English.pdfPhoenix 3211919 Tender Text English.zip
