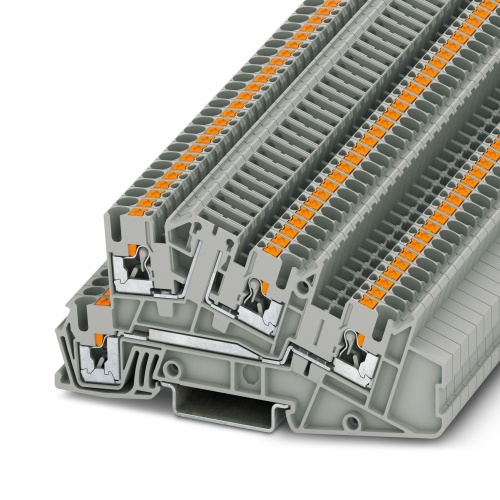

Phoenix Contact 3213961 Installation level terminal block PTI 2,5-L/TG
Normally In Stock
Code: 42159
PTI 2,5-L/TG Phoenix Contact 3213961 Installation level Terminal Block - PTI 2,5-L/TG Push-In Connection 1 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 250 V, 16 A max rating.
Condition: New
Usually Ships Same day or Next Day$7.15
Sale Price
$5.96
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3213961 The terminal block's installation level is determined by the current and voltage plug used, with a nominal voltage of 400V. The maximum allowed continuous thermal current is 24A. This terminal block features a push-in connection, with a rated cross-section ranging from 0.14mm² to 4mm². It is mounted using type NS 35/7.5 or NS 35/15 and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Sub Component
Installation Level Terminal Block
Features
The terminal blocks with knife disconnect zone in the upper level meet the safety requirement regarding individual circuit isolation of DIN VDE 0100-718
