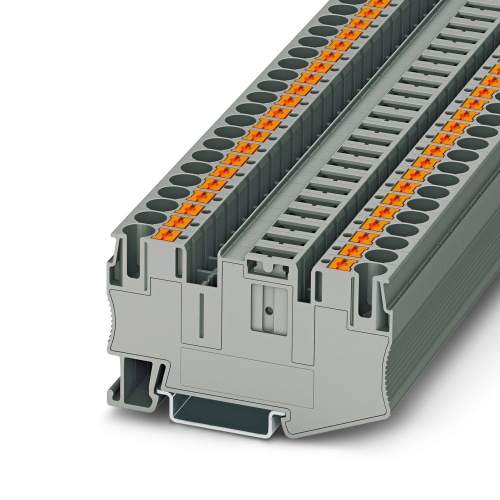

Phoenix Contact 3212163 Disconnect terminal block PT 6-TG
Normally In Stock
Code: 42158
PT 6-TG Phoenix Contact 3212163 Disconnect Terminal Block - PT 6-TG Push-In Connection 1 Level 8.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 500 V, 20 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$5.63
Sale Price
$4.69
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212163 The terminal block for the electrical connection has specifications that must be met, including a nominal voltage of 500 V and a maximum current of 20 A. The plug used determines the current and voltage values, with push-in connections being one option. The rated cross-sectional area is specified as 6 mm2, but can range from 0.5 mm2 to 10 mm2 for actual use. Additionally, mounting screws are provided in sizes NS 35/7,5 and NS 35/15, and the terminal block itself has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Terminal Block Disconnect
Removable Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Downloads
Phoenix 3212163 CAD data International.dxfPhoenix 3212163 CAD data International.pdfPhoenix 3212163 CAD data International.stpPhoenix 3212163 Manufacturers declaration International-2.pdfPhoenix 3212163 Manufacturers declaration International.pdfPhoenix 3212163 Safety note English.pdfPhoenix 3212163 Tender Text English.zip
